G20

Ion Sputter Coater with touchscreen display - For your SEM
Category:
Ion Sputter Coaters

Use it to form metal thin film on the surface of sample which is non-conductive or which has got weak conductivity.

When it is necessary to analyze the image or components using a scanning electron microscope (SEM), the image distortion occurs due to charge-up phenomenon of non-conductive objects, making normal measurement is difficult. Since the image is distorted due to the accumulation of charged particles on the surface of the non-conductive sample by the electron beam, the sputtering (coating) process must be performed.

The Ion Sputtering Coater is an essential pre-treatment equipment of sample for SEM with competitiveness in miniaturization, convenient use and low cost.

Info Request

Videos

Install the G20 of ion sputtering coater.
Operation Movie
How to use the G20 ion sputtte coater

News, events, promotions, webinars

23/08/2026
Sample Preparation and SEM Observation, in One Compact and Complete Solution

Related products

Nanos

Nanos - The next generation tabletop SEM
The next generation tabletop SEM with integrated EDS
Read more

G10

Ion Sputter Coater - For your SEM
Read more
Component of Equipment

Ion Sputter Coater

  • Tempered Glass for Chamber (Detachable)
  • Ultra-light weight coater (10kg)
  • 7 inch wide touch screen
  • Convenient service by BOARD composing for each function

Vacuum Pump - " Oil Rotary Pump " - optional

  • Pumping Speed : 100L/min

Coating Material " Au or Pt "

  • Au(4N) : 50mm(D)
  • Pt(3N5) : 50mm(D)
  • Gold target provided

Accessory - " Manual, Hose, Cable "

  • Manual (Install/Quick Guide)
  • Clamp
  • 1.5M Vacuum Hose
  • Power Cable
Coating Thickness
Current : 10mA, 3min Coating
Current : 10mA, 4min Coating
Current : 10mA, 7min Coating
Installed View

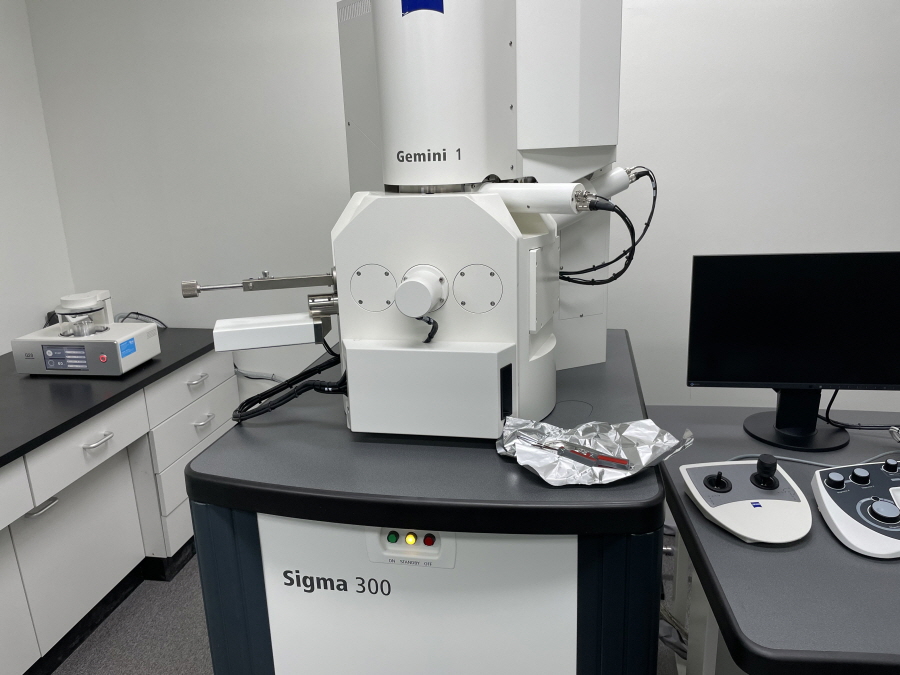

FE-SEM(FIB)
FE-SEM(FIB)
FE-SEM(FIB)
Normal-SEM
Normal-SEM
Normal-SEM
Tabletop-SEM
Tabletop-SEM
Tabletop-SEM

Technical Features

  1. Convenient control with 7 inch Touch Display
  2. Vacuum → Auto Coating → Vent control by one-touch
  3. Library : Save frequent use conditions (max 10)
  4. 7 pieces of Sample Stub (Φ14㎜) mounting together in chamber
  5. Prevention damage on sample thanks to the low voltage coating (1 to 10mA)
  6. Minimize installation space because of the compact size

Model

G20

Degree of Vacuum

2.0 x 10-1Torr

Ion Current

1 to 10mA (1mA/step)

Target Material

Au or Pt

Chamber Size

140mm(D) x 100mm(H)

Sample Stage

50mm(D) x 30mm(H)

Target Size

50mm(D)

Sputter Time

1 to 600sec (1sec/step)

Vacuum Pump

100L/min, Rotary Pump

Power

110~220VAC ±10%, 50/60Hz

Dimension

Main : 380(W)x240(D)x250(H)mm, 10kg
Pump : 454(W)x170(D)x240(H)mm, 23kg
