The S onix provides the speed required in a high-throughput industrial metrology system. With its high-speed camera and optimized optical and mechanical design, S onix is up to 7 times faster than other interferometric systems available today. Vertical resolution has been maintained, where the advantage of high speed brings with it the added bonus of improved resistance against vibration.
Files
Attachment | Size |
---|---|
Sensofar Sensors for Inline Metrology - Brochure | 1.55 MB |
News, events, promotions, webinars

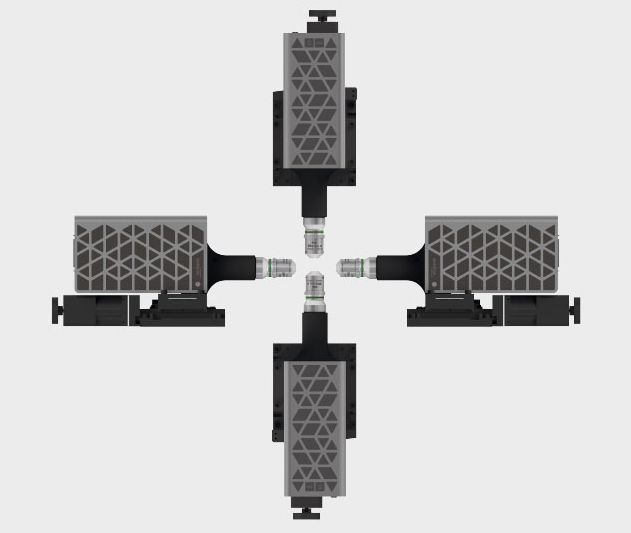

Small size and low weight make designing for integration easy. Able to be mounted in any orientation, S mart and S onix can be positioned as the application dictates. Cable lengths can be up to 14m. This makes them perfectly adaptable for both in-line production and robot-mounted sensing applications.
Interferometry
White-light vertical scanning interferometry (VSI) is a widely used and powerful technique for measuring surface characteristics such as topography or transparent film structure. It is best suited for measuring smooth to moderately rough sourfaces, and provides nanometer vertical resolution regardless of the objective’s NA or magnification.
SensoSCAN
SensoSCAN software drives the systems with its clear and intuitive user-friendly interface. The user is guided through the 3D environment, delivering a unique user experience. SensoSCAN software provides an interface with which any measurement can easily be taken, as well as a comprehensive set of tools for displaying and analyzing data.
For applications requiring a more complete analysis suite, advanced analysis software packages are optionally available – SensoMAP and SensoPRO LT.
ISO Parameters
All Sensofar software packages are compliant with ISO 25178. A complete selection of ISO 3D areal surface texture parameters – height, spatial, hybrid, functional and volumetric parameters – as well as 2D profile parameters are available.
SDK
The software development kit (SDK) provides the tools and protocols needed to create proprietary applications that are able to communicate with and manage SensoSCAN. Developers can choose the platform and language for their applications without any constraint. SensoSCAN SDK commands and events provide a means to remotely inspect a sample and perform measurements based on acquisition recipes. Once a propietary application has been developed for one system, it can be used with others.
SensoPRO LT
It has never been so easy to perform rapid quality control in a production line. Thanks to SensoPRO LT, the operator only needs to load the sample and follow guided instructions. Plug-in-based data analysis algorithms provide a high degree of flexibility. Available plug-ins include LED Mobile (Conic, Mesa and Merging LEDs), Bump, Hole, Double Hole, Surface Texture, Step Height, Double Step Height, Trace, Trench, Silver Trench and Prisms. New modules can be easily developed for other industry needs.
Technical Features
S onix | |
---|---|
Measurement Principle | Interferometry VSI |
Light source [nm] | 550 nm |
Dimension Sensorhead [mm] | 281x 150 x 82 (HxWxD) |
Dimension Control [mm] | 212 x 220 x 135 (HxWxD) |
OBJECTIVES INTERFEROMETRIC | ||||||
---|---|---|---|---|---|---|
Magnification (MAG) | 2.5x | 5x | 10x | 20x | 50x | 100x |
Numerical Aperture (NA) | 0.075 | 0.13 | 0.30 | 0.40 | 0.55 | 0.70 |
Working distance (WD) [mm] | 10.3 | 9.3 | 7.4 | 4.7 | 3.4 | 2.0 |
Field of view (FOV) [μm] | 5040 x 3780 | 2520 x 1890 | 1260 x 945 | 630 x 472 | 252 x 189 | 126 x 94 |
Spatial Sampling | 7.88 | 3.94 | 1.97 | 0.98 | 0.39 | 0.19 |
Optical resolution | 7.88 | 3.94 | 1.97 | 0.98 | 0.39 | 0.19 |
Measurement Time | 25 |
OBJECTIVES VSI | ||||||
---|---|---|---|---|---|---|
Vertical Resolution (nm) | 1 | |||||
Maximum Slope (°) | 3 | 8 | 14 | 21 | 25 | 42 |
z-stage performance | |
---|---|
Z | Linear Scale |
Vertical range |
40mm |
Linearity | <0,5 µm/nm |
Resolution | 2nm |
software | |
---|---|
User Management Rights | Administrator, advanced operator, operator |
Acquisition Technologies |
VSI |
Measurement Types |
Image, 3D and 3D thickness |
Advanced Software Analysis |
SensoMAP and SensoProLP (optional) |
Remote control | Software Development Kit (SDK) (optional) |
computer and operating system | |
---|---|
Computer | HP Z230SSF with 1920x1080px HP23i Display |
Operating System |
Windows 8, 64 bit |
