Tomocube Accessories

Environmental Control Device / TomoDish and TomoPlates / Vessels / Fluorescence Module
Brand:
Tomocube, Inc
Category:
Holotomographic Microscopy

Accessories is a cell-culture dish with creative and ideal design for live cell imaging. With Accessories, our incubator will show best performance.

Info Request
Environmental Control Device

The HT-X1 system supports an incubator within the microscope to maintain optimal temperature and gas concentration conditions for live cell imaging. The incubator is equipped with an integrated gas mixing unit and a chamber for mounting samples onto the stage.

Model: STXG-WSKMXA22B (Tokai HIT)

Dimensions: 151 (W) x 263 (D) x 196 (H) mm

Weight: 3.8 kg

Temperature setting range:

  • Sample temperature: 37 °C
  • Top heater: 10 °C – 65 °C
  • Bath heater: 10 °C – 50 °C
  • Stage heater: 10 °C – 50 °C
  • Lens heater: 10 °C – 45 °C
  • Rise time: 10 minutes to reach 50 °C

Temperature accuracy: ±0.3 °C

Humidity control:

Heated humidification via heating bath
Recommended water volume: 32 mL

CO2 Concentration Range:   5% – 20%

Control method: PID control
Accuracy: ±0.1%
Gas type: 100% CO₂

Gas Pressure:

  • Input: 0.1 MPa – 0.15 MPa
  • Output: 160 mL/min

Power supply: 100 - 240 V AC ±10%, 50/60 Hz

For ordering:

Cat. No. 900101-01 Environmental Controller

TomoPlate

Our active vibration isolation system enables users to capture images in an extremely stable environment. This system uses electronic feedback control to detect and effectively reduce low-frequency vibrations. It works in six degrees of freedom (three translational and three rotational), ensuring effective vibration control. The intuitive design is compact and lightweight.

Product: Active Vibration Isolation TomoPlate

Model: DVIA-T56 (Daeil Systems)

Dimensions: 500 (W) x 600 (D) x 93 (H) mm

Weight: 32 kg

Maximum Load Capacity: 90 kg

Actuator: Electromagnetic Actuator

Maximum actuator force:

  • Vertical: 6 N
  • Horizontal: 3 N

Active isolation range: 0.5 - 100 Hz

Degrees of Freedom: 6 degrees

Vibration isolation performance:

  • ≥ 90% at 2 Hz
  • 99% at 10 Hz

Settling time: ≤ 0.3 sec (Note: The settling time varies depending on various factors such as load, force, natural frequency, etc.)

Automatic leveling/Load adjustment: Yes

Realìtime monitoring: Active isolation status and automatic leveling visible on LCD display

For ordering:

Cat. No. 901003-02 Active Vibration Isolation System

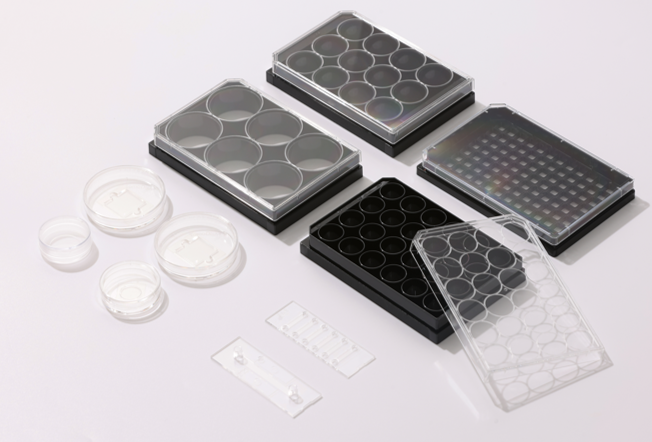

TomoDish e TomoPlates

Izon instruments can accommodate different types of supports: from petri dishes to plates.

TomoDish are petri dishes, designed to house both adherent and suspension cells, offering optimal conditions for culture and imaging. Applications include cell culture and high-resolution microscopy, live and fixed cell imaging, real-time live cell imaging over time, immunofluorescence staining, and transfection assays.

Technical specifications:

  • Glass thickness: 1.5 high precision (170 ± 5 microns)
  • Diameter: 50 mm
  • Medium volume: 3 mL (Recommended)
  • Observation area: 20 mm × 20 mm
  • Sterilization method: Gamma irradiation

For ordering:

  • Cat. No. 901002-02 – TomoDish (100 pcs. (10 pcs. packed))
  • Cat. No. 901002-03 – Top coverslip (200 pcs.)





The 96-well plate offered by Tomocube features lower walls, allowing light to pass through at different angles. The solvent-resistant bottom with a coverslip ensures superior flatness of the inner wells and the entire plate, with zero autofluorescence, providing clear imaging.

Main applications include high-content analysis, cell culture (adherent, suspension, and organoid cells), high-throughput screening, high-resolution microscopy, real-time live cell imaging, and immunofluorescence staining.

Technical specifications:

  • Dimensions with lid: 127.8 (W) x 85.5 (D) x 17.2 (H) mm
  • Dimensions without lid: 127.8 (W) x 85.5 (D) x 15.0 (H) mm
  • Single well dimension: 7.4 x 7.4 mm
  • Single well depth: 4.2 mm
  • Standard conformance: ANSI/SLAS (SBS) Microtiter Plate Format
  • Working volume per well: 150 – 220 µL
  • Growth area per well: 56 mm²
  • Bottom material: Polymer
  • Bottom thickness: 0.17 mm (#1.5 polymer coverslip)
  • Surface treatment:
    • Tissue culture treated (ibiTreat)
    • Uncoated
  • Plate material: Polystyrene (black)

For ordering:

  • Cat. No. 900104-01
    • Surface: Tissue culture treated
    • Pcs. per Box: 15 (individually packed)
  • Cat. No. 900105-01
    • Surface: Uncoated
    • Pcs. per Box: 15 (individually packed)
Vessels

To ensure secure mounting and compatibility with the size and shape of the plate/petri dish/glass slide, it is recommended to use Tomocube holders. These holders are designed to optimize the use of the HT-X1 instrument, ensuring stability and precision during imaging and cell culture operations.

Ordering informations:

  • ATX-W

    • Compatible vessel: Multi-well plates
    • Compatible with standard microtiter plates (127.5 mm x 85.5 mm)

  • ATX-A

    • Extension holder for ATX-D and ATX-CSG

  • ATX-D

    • Compatible vessel: 35/50/60 mm petri dishes

  • UNIV2-D35-2 (Cat. No. 900102-01)

    • Compatible vessel: 35 mm petri dish
    • For mounting two 35 mm petri dishes

  • UNIV2-D35-4 (Cat. No. 900102-11)

    • Compatible vessel: 35 mm petri dish
    • For mounting four 35 mm petri dishes

  • UNIV2-D35-6 (Cat. No. 900102-21)

    • Compatible vessel: 35 mm petri dish
    • For mounting six 35 mm petri dishes

  • UNIV2-D35-E21W (Cat. No. 900102-31)

    • Compatible vessel: 35 mm petri dish
    • For mounting six 35 mm petri dishes, with clips to secure the dishes, even with the lid

  • ATX-D35-4FLD (Cat. No. 900102-41)

    • Compatible vessel: 35 mm petri dish
    • For mounting four 35 mm petri dishes, with clips to secure the dishes, even with the lid

  • ATX-CSG (Cat. No. 900102-51)

    • Compatible vessel: Glass slide
    • Compatible with 75 mm x 25 mm slides, including chamber slides

  • X1-HTSG (Cat. No. 901106-01)

    • Compatible vessel: Glass slide
    • Compatible with 75 mm x 25 mm slides

  • X1-HTTD (Cat. No. 900106-11)

    • Compatible vessel: TomoDish

  • X1-HTTD-2 (Cat. No. 900106-21)

    • Compatible vessel: TomoDish
    • For mounting two TomoDishes

  • X1-HTSG-L (Cat. No. 900106-31)

    • Compatible vessel: Glass slide
    • Suitable for live cell observation using a glass slide
Fluorescence Module

The Fluorescence Module X is designed to integrate advanced fluorescence imaging capabilities with the HT-X1™ Plus, providing high-resolution images thanks to precision optical components and fast response times. The module is ideal for a wide range of fluorescence imaging applications, including real-time observation and analysis of samples with fluorescent targets.

Technical specifications:

Dimensions:

  • Width: 434 mm
  • Depth: 409 mm
  • Height: 174 mm
  • Weight: 25 kg

Light source: LED

Excitation filters:

  • 378/52 nm
  • 474/27 nm
  • 554/23 nm
  • 635/18 nm

Emission filters:

  • 432/36 nm
  • 515/30 nm
  • 595/31 nm
  • 698/70 nm

Filter exchange time: 100 ms

Fluorescence image sensor: sCMOS

Quantum efficiency: 95% (wavelength: 580 nm)

Fluorescent light source trigger: 3 channels
