Fast Streaming Video, high sensitivity, and unique colour fidelity.
The USB20DPX ,20 MegaPixel camera, is designed to excel in image quality, sensitivity, colour fidelity, and speed. The USB20DPX is designed to produce high-quality images for clinical, material science and industrial applications such as quality control and failure analysis.
Files
Application Fields

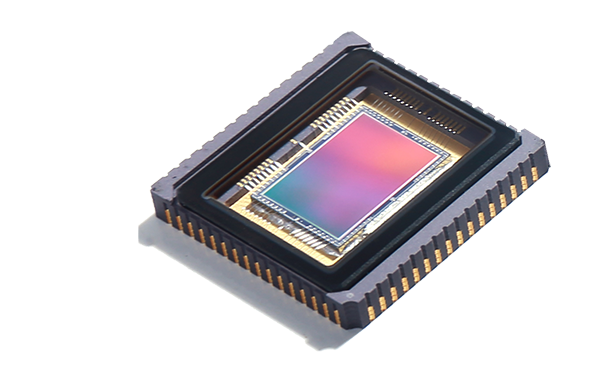

Sony IMX183CQJ-J
Uses a Sony 20 megapixel CMOS 1″ sensor-IMX183, with 2.4 x 2.4 μm pixels. The resolution of the captured image can reach 5472 x 3648. Images taken at low magnification readily resolved.
The USB20DPX Microscope camera is built with Sony's newest sensor the Exmortm which is a superior sensor for various reasons, this is due to The Exmortm sensors digitize the pixels before the column signals are multiplexed, thereby minimizing the noise signal significantly compared to standard CMOS sensors.
The special construction of the Exmortm sensor allows the sensor to produce smear-free images like other CMOS sensors, but without the limited dynamic range and contrast know from traditional CMOS sensors.
Sony Exmor back-illuminated structure sensor, is developed with the intention of capturing vivid images even in low light settings. “Exmor ” sensor is approximately twice as sensitive as a conventional front-illuminated CMOS sensor and also features low noise. This is due to back-illuminated CMOS sensor, light is directed onto the silicon substrate from behind, allowing light to be used with a level of efficiency not possible with conventional front-illuminated pixel structures.
The new USB 3.0 DPX cameras will include special software "Capture 2.0" with many features for image acquisition, camera control, even features like image stacking and image stitching are included.
Plug and play – the HDMI interface for ease of installation on any 4K monitor.
C-mount makes the camera compatible with most microscopes and objectives on the market.
The USB20DPX – Microscope camera is made with high quality IR filter which protects the sensor from invisible light and dust. DeltaPix IR-filters are free from scratches and other artefacts, which could potentially degrade the image quality.
Technical Features
Image Sensor
1" format Sony Exmor sensor
Effective pixels
20 Mpixels(5472X3648)
Frame rate
5472 x 3648 @15FPS
2736 x 1824 @53FPS 2x2bin
1824 x 1216 @67FPS 3x3bin
Pixel size
2.4 x 2.4 microns
Colour filter
Red, green and blue in Bayer pattern
White Balance
Automatic / Manual
Auto Exposure
Automatic / Manual
Shutter
Rolling shutter
Binning
2×2
3x3
Interface Connector
USB 3.0 high-speed interface
Lens Mount
C-mount
Mass
330g
Power Requirement
Via USB
Dimensions H X W X D
68x68x46
PC Software
Included
Operating System
Windows (MAC coming soon)
