The most versatile probe: a good choice for many applications
The 25Pt300B is RMN’s most popular probe. Its higher spring constant is good for conductance measurements (c-AFM) and high resolution KPFM imaging. This versatile probe is a good choice for most applications.
- Tip shank length: 80 μm (± 25%)
- Cantilever length: 300 µm (± 15%)
- Cantilever width: 110 µm (± 15%)
- Spring constant: 18 N/m (± 40%)
- Frequency: 20 kHz (± 30%)

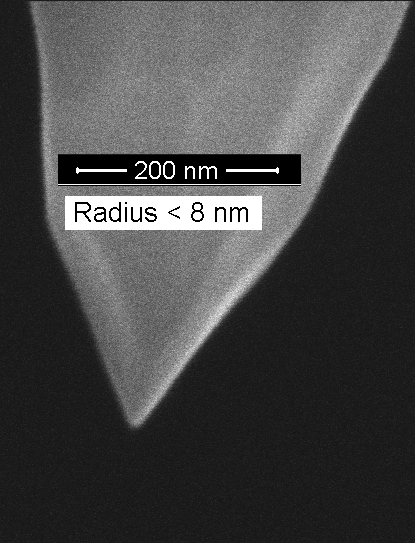

- Tip radius: < 20 nm / < 10 nm
Probes designed specifically for the Keysight (Agilent) Scanning Microwave Microscope (SMM) add-on have the letter A rather than B (ie 12Pt400A).
Files
News, events, promotions, webinars
Technical Features

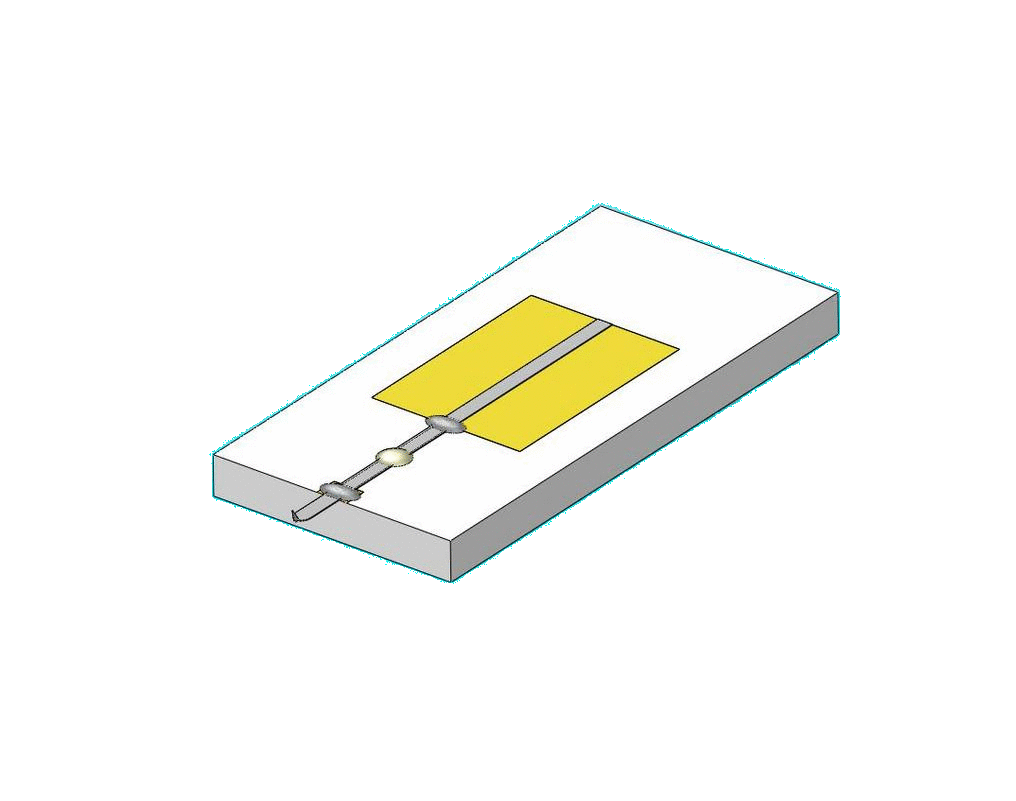

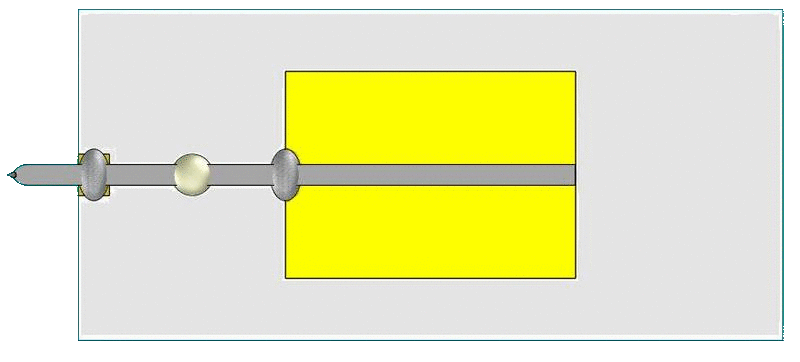

Material: Solid platinum or platinum-iridium probe tip and cantilever supported on standard AFM probe sized ceramic chip, connected to conductive gold bonding pad with conductive epoxy. RMN also has probes available without gold contact pad, to help reduce stray capacitance.
Probes on standard sized substrates have a part number ending in the letter B (i.e. 25Pt300B).
Probes designed specifically for the Keysight (Agilent) Scanning Microwave Microscope (SMM) have the letter A rather than B (i.e. 12Pt400A).
Additional substrates:
- C - Substrate without gold bonding pad, to help reduce stray capacitance (= to A dimensions)
- D - Substrate has a 200um gold transmission line the entire length of the chip and the back is completely covered in gold (standard size chip)
- E - Substrate has the same features as the D substrate, only it is thinner (5 mil thick)
