HT-X1

High-Performance Holotomography microscope for imaging at scale

Observations of cellular morphology and activity are typically based on labeling of target molecules. These methods are invasive, affect the nature of the target molecules and potentially interfere with their biological relevance. In addition, these forms of label are not effective in providing quantitative information. The tools used to visualize labels are generally damaging to cells as often laser-based illumination is used to excite fluorochromes which in turn causes phototoxic damage to the cells.

The “holy grail” of imaging is to visualize cells without labeling to ensure the cells behave and grow normally. Holotomography (HT) does this by capturing the intrinsic light scattering properties of cellular materials using very low levels of light intensity, just enough to allow the light to pass through the cell. In doing so, the refractive index (RI) information of structures within the cell can be collected and selectively pseudo-colored to reveal the cell and its organelles.

In capturing the RI distribution, the Tomocube HT-X1 Holotomography can also provide quantitative data in 3D such as the volume, surface area, and dry mass of cells and their intracellular structures

Videos

Long-term time lapse imaging of breast cancer cells (MCF7)
Lipid droplet accumulation in mouse adipocytes (3T3-L1)
Mitosis and human cervical cancer cells​ (HeLa)

Files

AttachmentSize
PDF icon HT-X1 Flyer2.45 MB
PDF icon HT-X1 Brochure 5.59 MB
Features
  • High resolution, high contrast, and high sensitivity
  • Large captured fields
  • Programmable multi-well plate imaging
  • Laser autofocus for well-to-well reproducibility
  • Low noise, speckle-free imaging with no calibration step
  • Bioimaging made quantitative
  • Integrated incubation for long term timelapse
  • Integrated 5 channel FL light engine
  • Correlative holotomography with 3D fluorescence
  • True multi-dimensional imaging across time, space and modality
System Configuration
Tomocube HT-X1 - System Configuration

1. HT-X1 main unit

  •  Holotomography illumination
  •  Detection
  •  Sample holder
  •  Environmental chamber
  •  Positioning stages
  •  Fluorescence light engine

2. Environmental control unit

  • External controller for temperature and gas

3. Software

  • TomoStudio X for control of acquisition
  • TomoAnalysis for data analysis and report
TomoStudio X
TomoStudio X - Login page

As the control software for the HT-X1, TomoStudio X is designed to operate the system as you design the experiment. TomoStudio X offers flexible workflows for multi-dimensional image acquisition of holotomography and fluorescence in multi-well imaging conditions. All the essential control and status of the system are displayed all at one glance.

Functions

  • Data acquisition​
  • Experiment setting
  • Timelapse sequence​

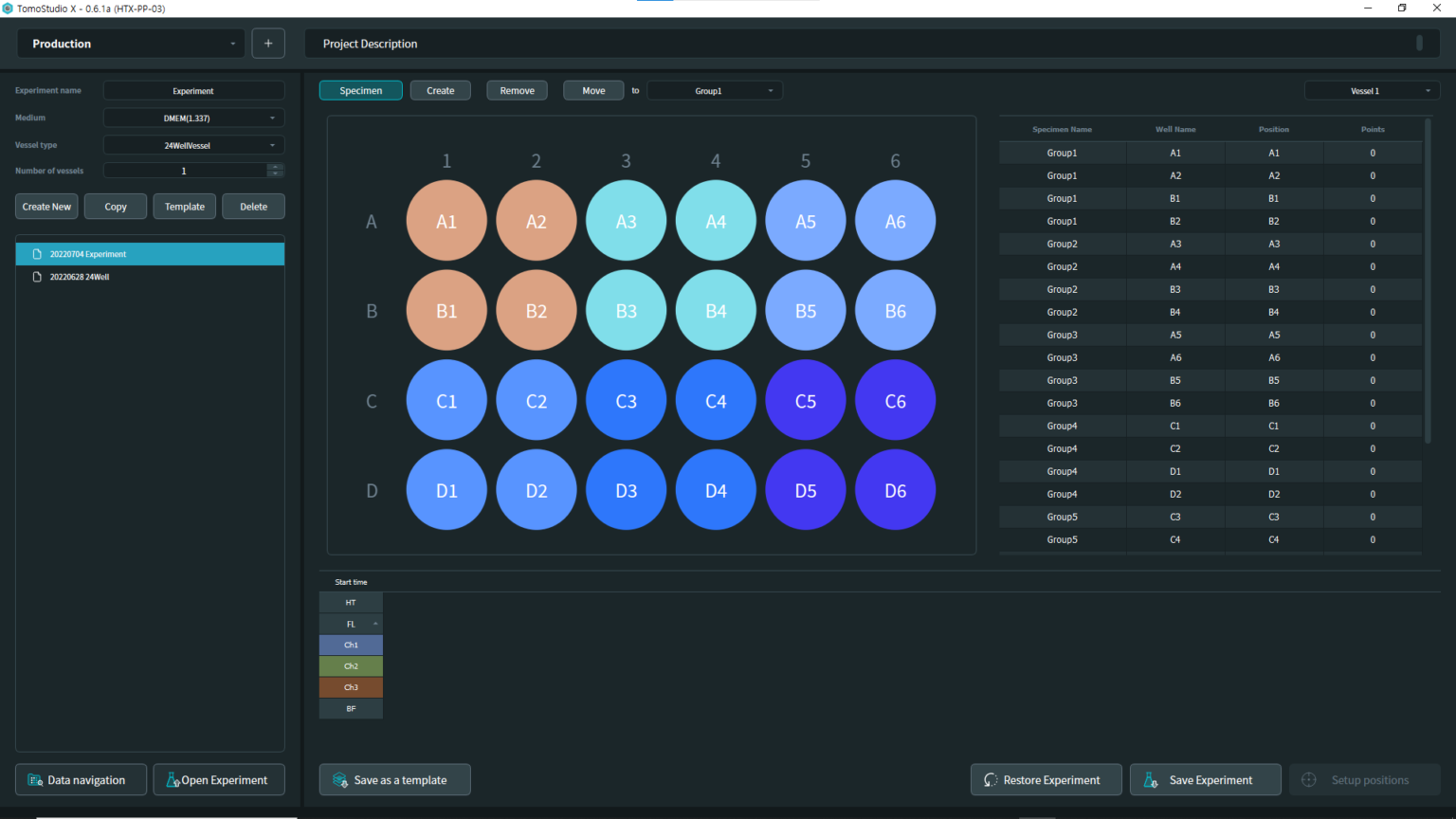

TomoStudioX_Timelapse sequence​ setting

Technical Features

  • Objective lens: 40x 0.95 NA air
  • HT light source: 450 nm LED
  • Lateral resolution: 156 nm
  • Field of View: 160 µm x 160 µm
  • Fluorescence: Up to 5 channels – 4 channels built-in with blank position for 5th filter of choice
  • Stage: motorized with Laser auto-focus module
  • Size: 900x500x600 mm (h, w, d)
  • Weight: 90 kg
