The DVIA-UB is a low-profile active vibration isolation platform with the integrated DVIA-U active vibration isolators, designed to isolate Scanning Electron Microscopes from low-frequency floor vibrations.
Files
| Attachment | Size |
|---|---|
 Catalogue DVIA-U Series | 12.85 MB |
| DVIA-UB700 Installation Report | 392.36 KB |
The advanced active vibration control algorithms are embedded in the DVIA-UB series, delivering ≥90% vibration isolation at ≥4 Hz.
The DVIA-UB is a low-profile base active vibration isolation platform, the optimal vibration solution for equipment with a limited space.
The passive mechanism of the DVIA-UB is simple that it does not require our engineers to visit the site and setup the active isolation system. Users can setup the system by simply following the user manual.
All the DVIA-UB requires eletricity to operate.
Daeil Systems takee pride in his work to provide a vibration isolation system that actually reduce floor vibrations.
The UI software is provided along with the DVIA-U series for users to monitor the real-time active vibration isolation performance and floor vibration levels.
The DVIA series uses the Feedback control algorithm to continuously detect vibrations disturbing an isolated surface and instantaneously react to minimize the vibrations in real-time. The Feed-Forward control algorithm is employed in the DVIA Series to filter out floor vibrations in advance before the floor vibrations can be transmitted to equipment installed on the active vibration isolation systems.
The DVIA Series controls vibrations in three translational degrees of motions ( X, Y and Z) and three rotational degrees of motions ( pitch, roll and yaw).
≥90% vibration isolation at ≥4 Hz

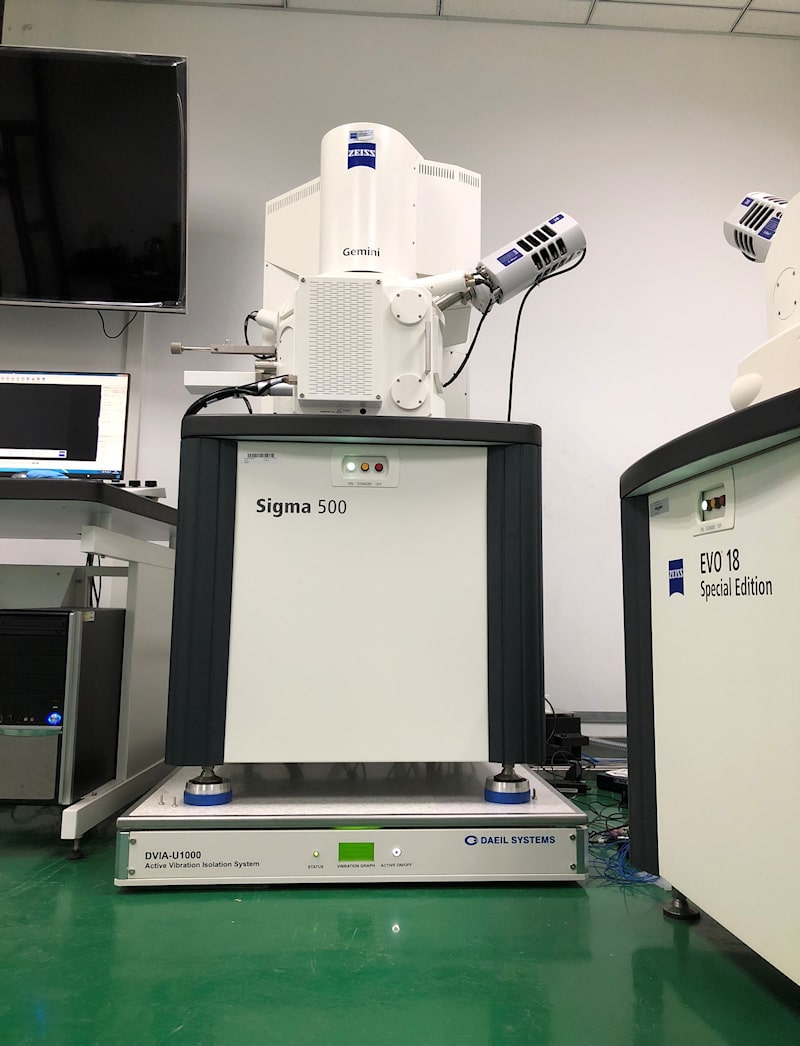

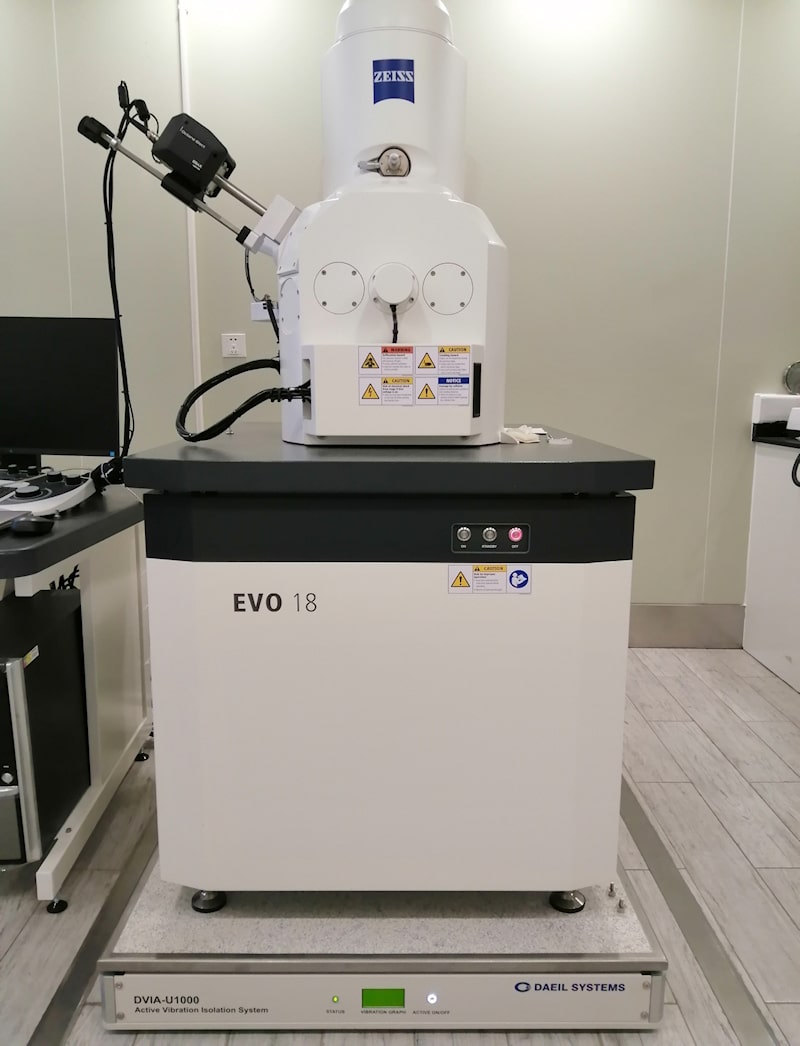

Scanning Electron Microscopy
Technical Features
Model | DVIA-UB350 | DVIA-UB700 |
|---|---|---|
Platform Dimensions (L x W x H) | Custom-made | Custom-made |
Maximum Load Capacity | 350 kg | 700 kg |
Actuator | Electromagnetic Actuator | Electromagnetic Actuator |
Maximum Actuator Force | Vertical: 6 N, Horizontal: 3 N | Vertical: 12 N, Horizontal: 6 N |
Degrees of Freedom | 6 degrees | 6 degrees |
Active Isolation Range | 0.5 - 100 Hz | 0.5 - 100 Hz |
Vibration Isolation at ?4 Hz | ≥ 90% | ≥ 90% |
Input Voltage (V) | AC100 - 240V / 50 - 60 Hz / 1A | AC100 - 240V / 50 - 60 Hz / 1A |
Power Consumption (W) | Maximum 110W, <50 W in normal operation | Maximum 110W, <50 W in normal operation |
Operating Range/Temperature (° C) | 5 - 50 °C | 5 - 50 °C |
Operating Range /Humidity (%) | 20 - 90% | 20 - 90% |
