The S wide is a dedicated system designed to rapidly measure large sample areas up to 300 x 300 mm. It provides all the benefits of a digital microscope integrated into a high resolution measuring instrument. Extremely easy-to-use with one single button acquisition.
Videos
Files
News, events, promotions, webinars

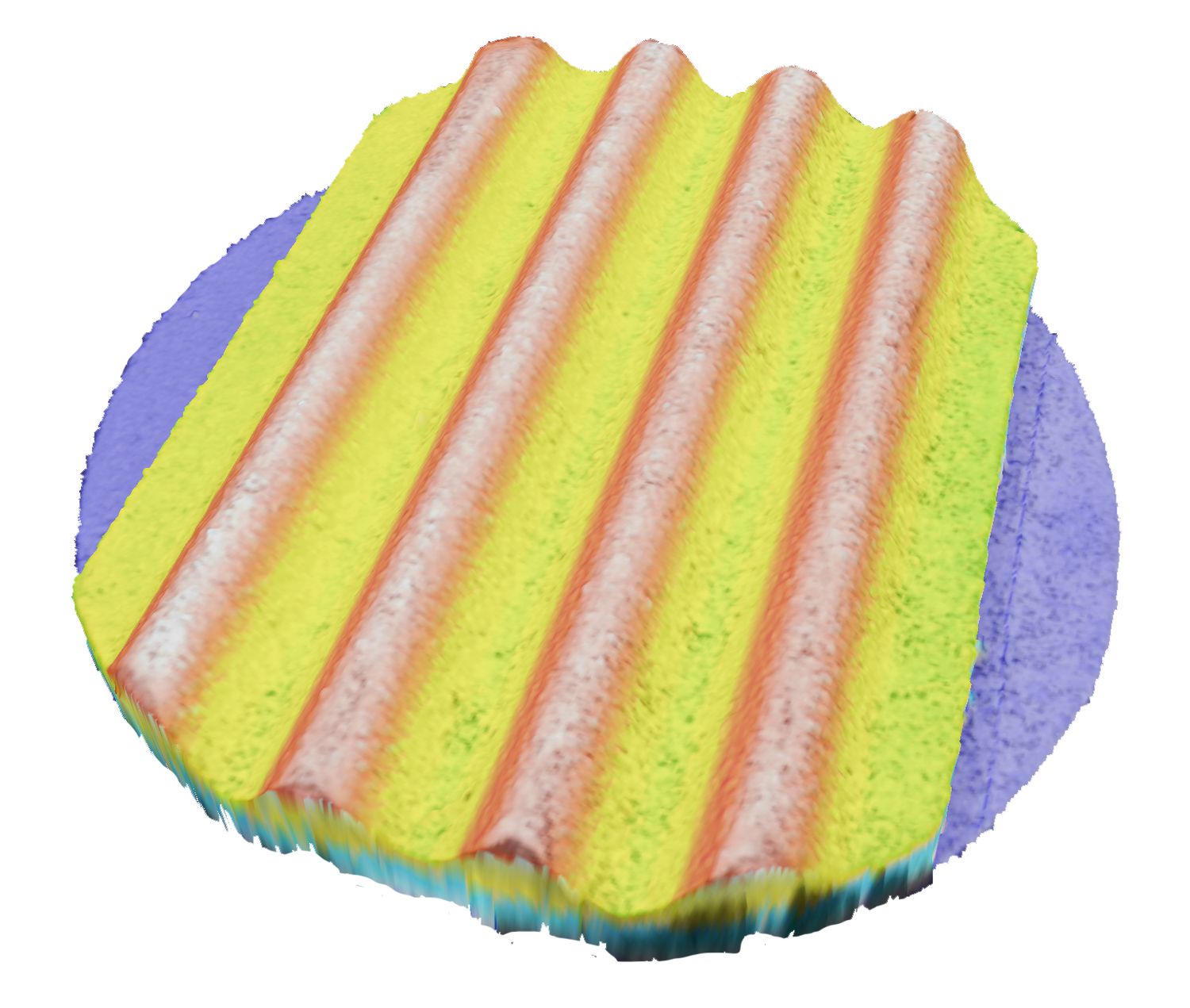

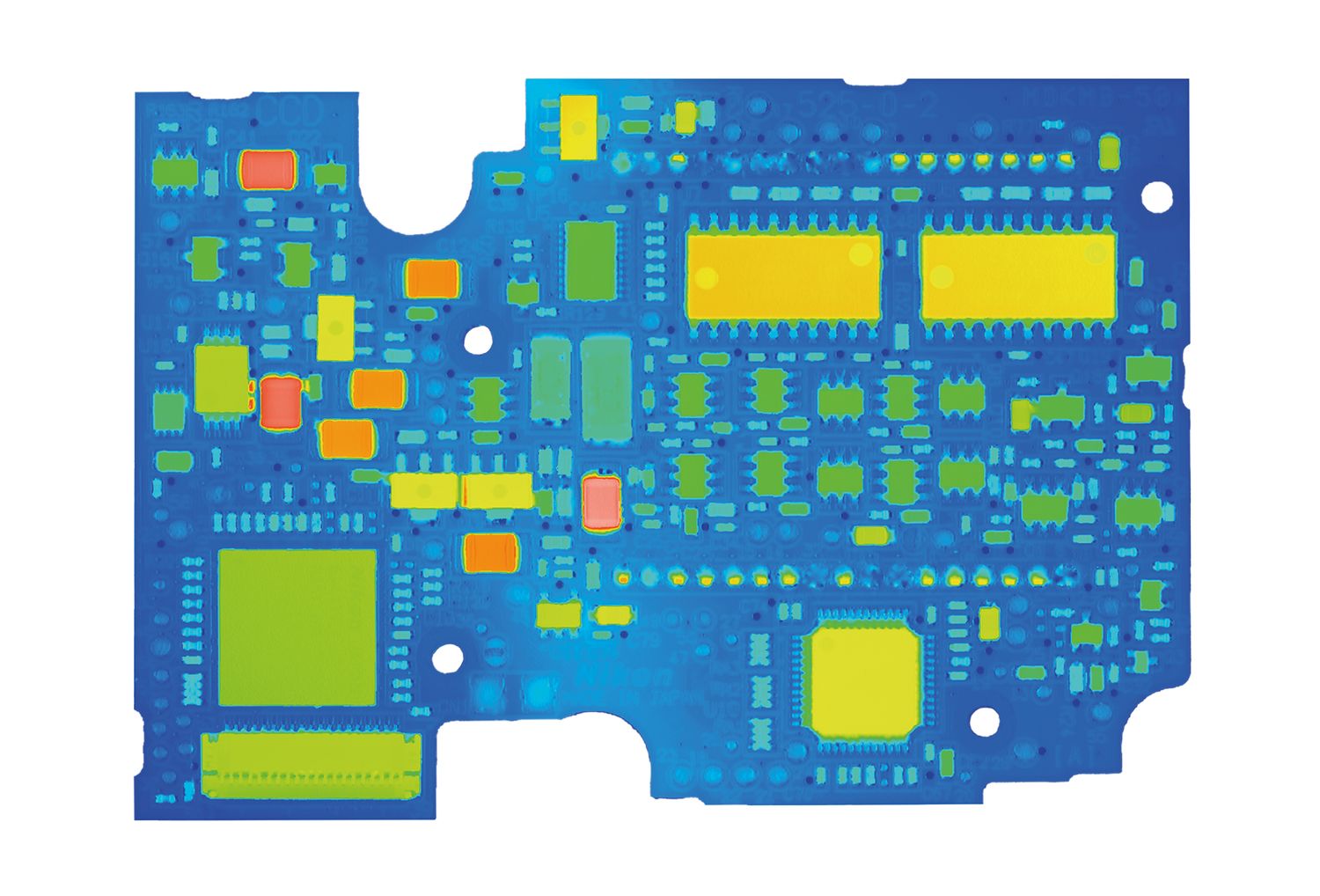

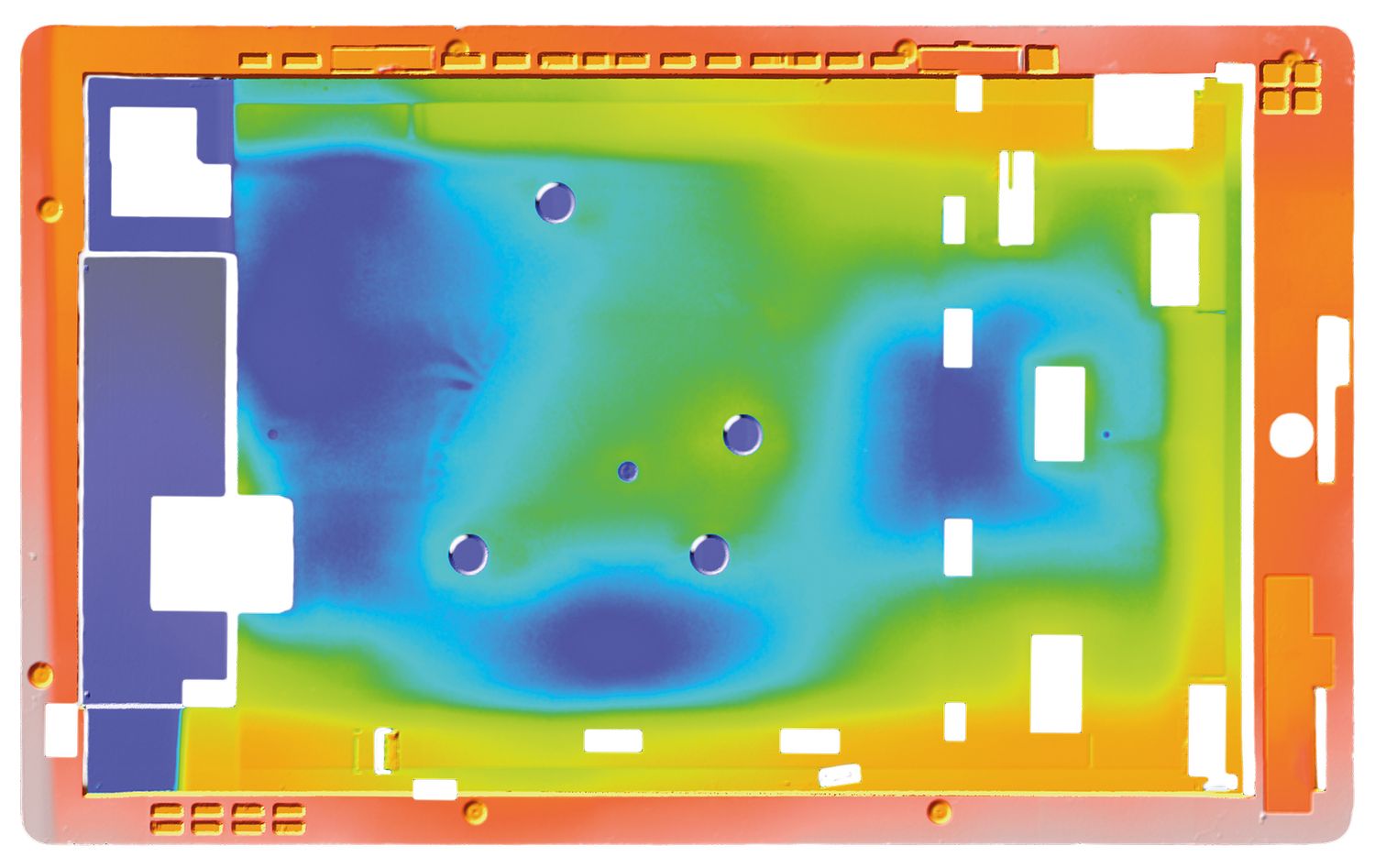

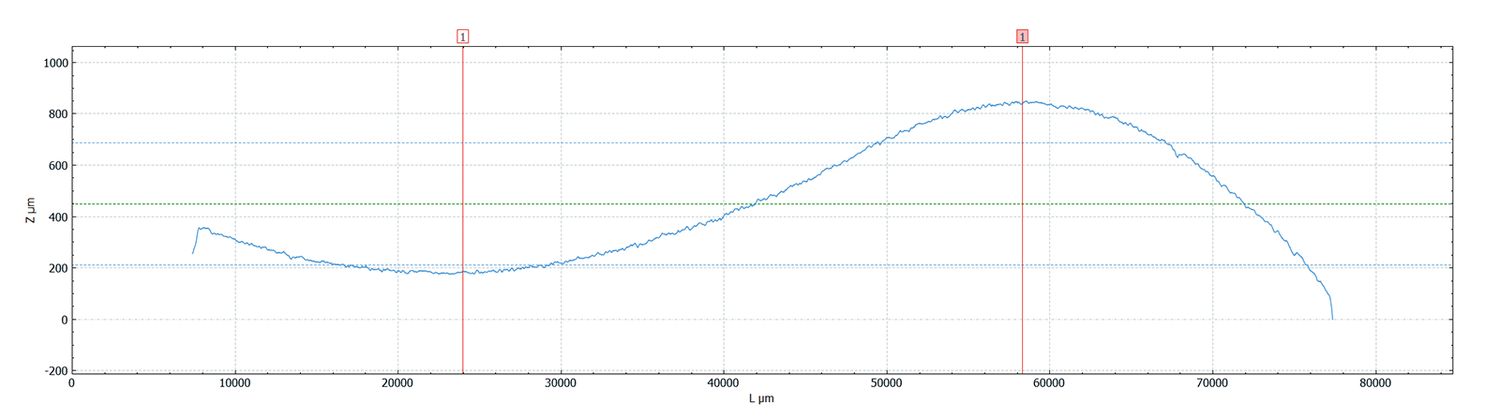

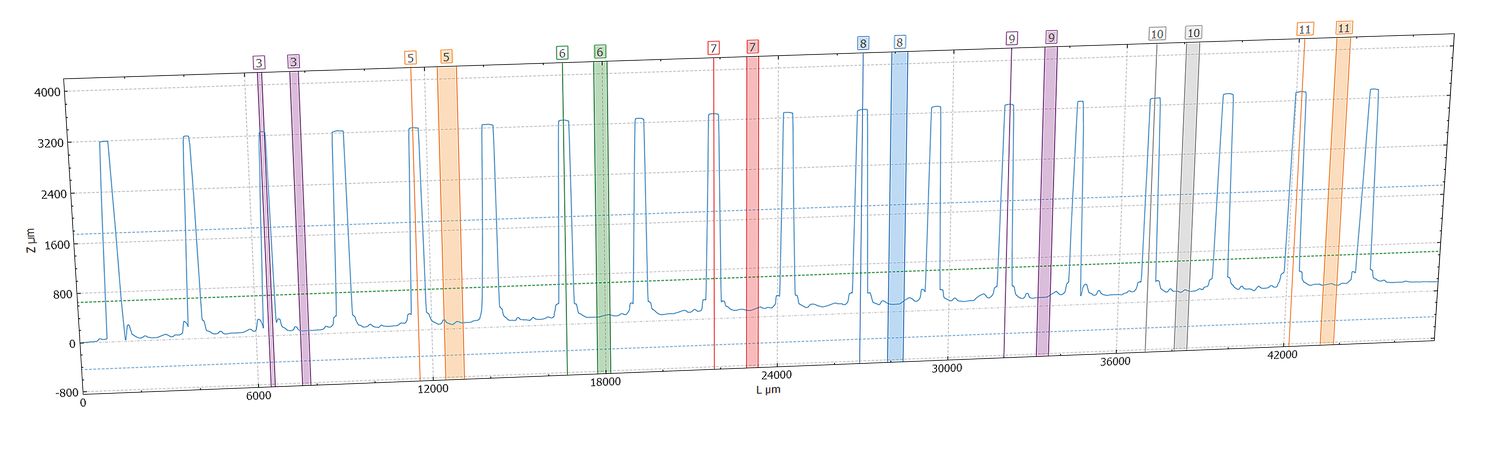

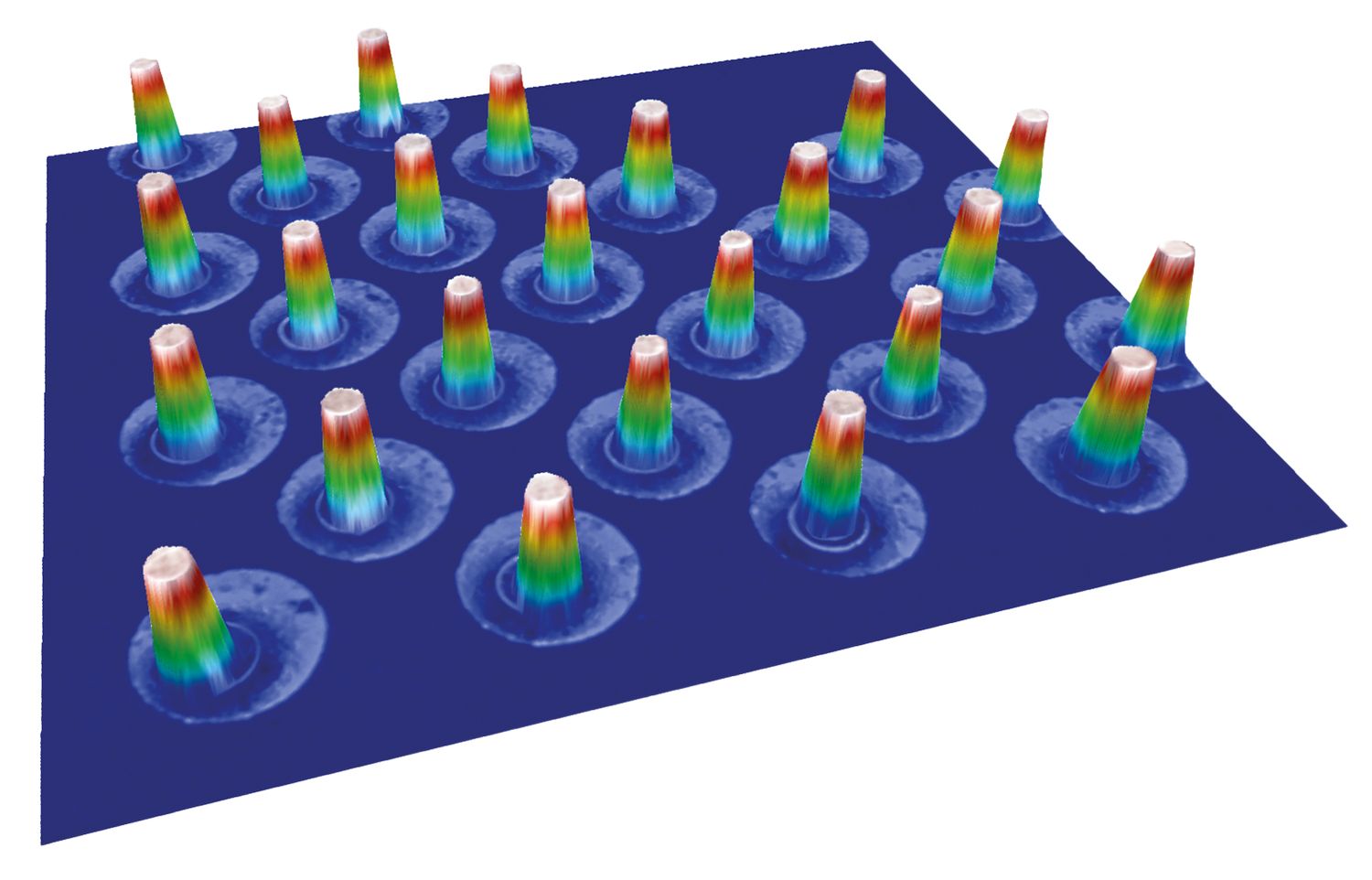

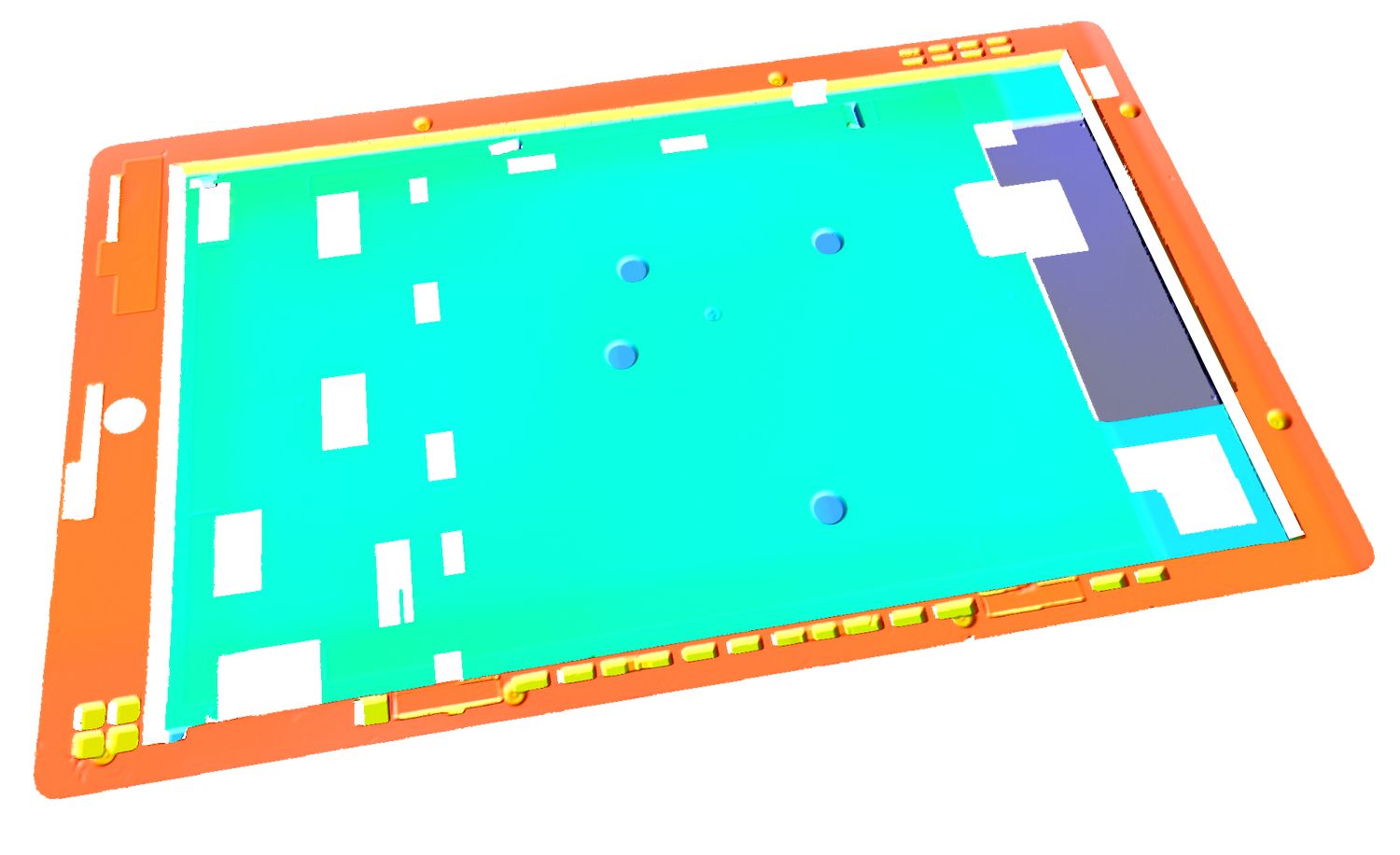

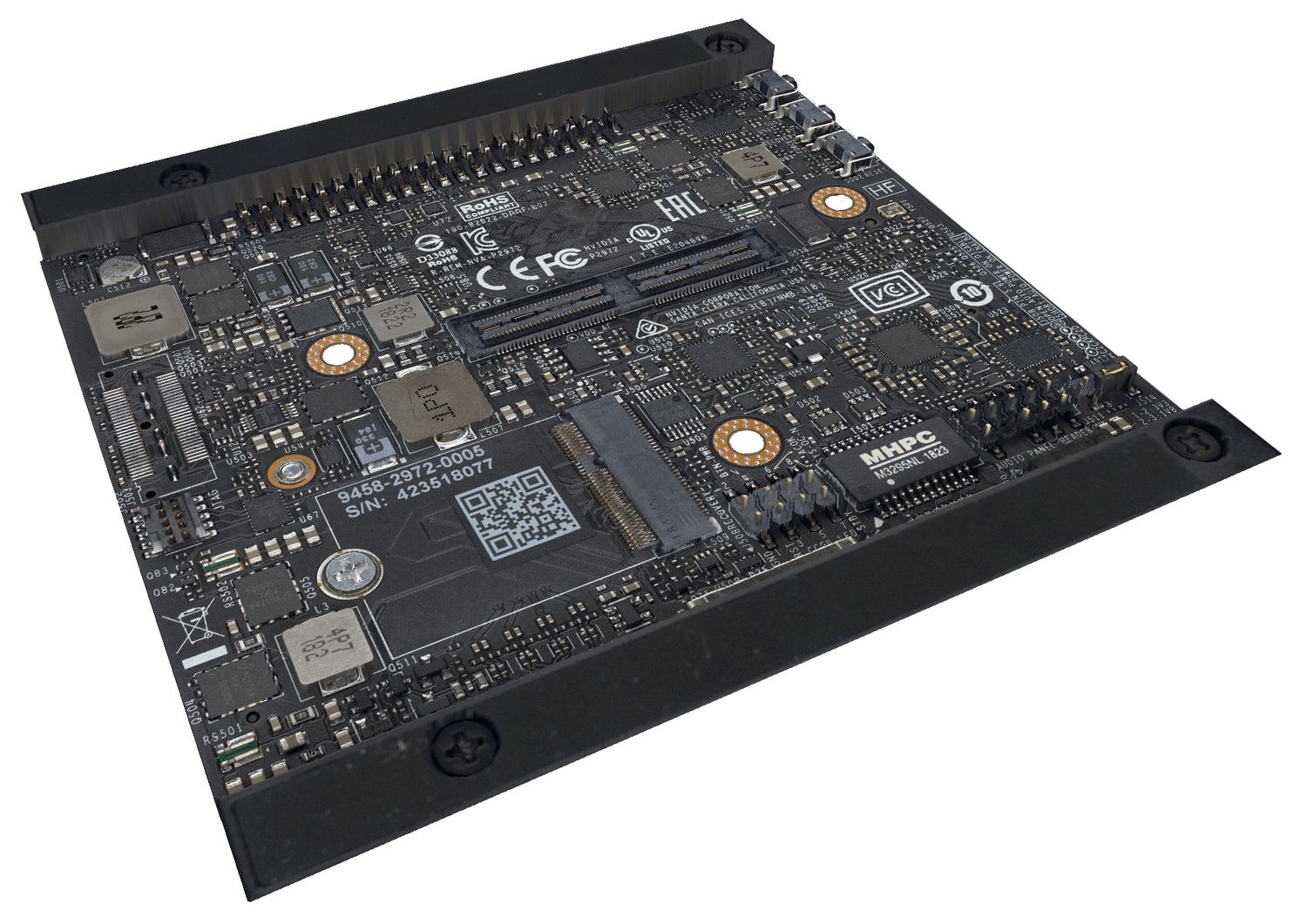

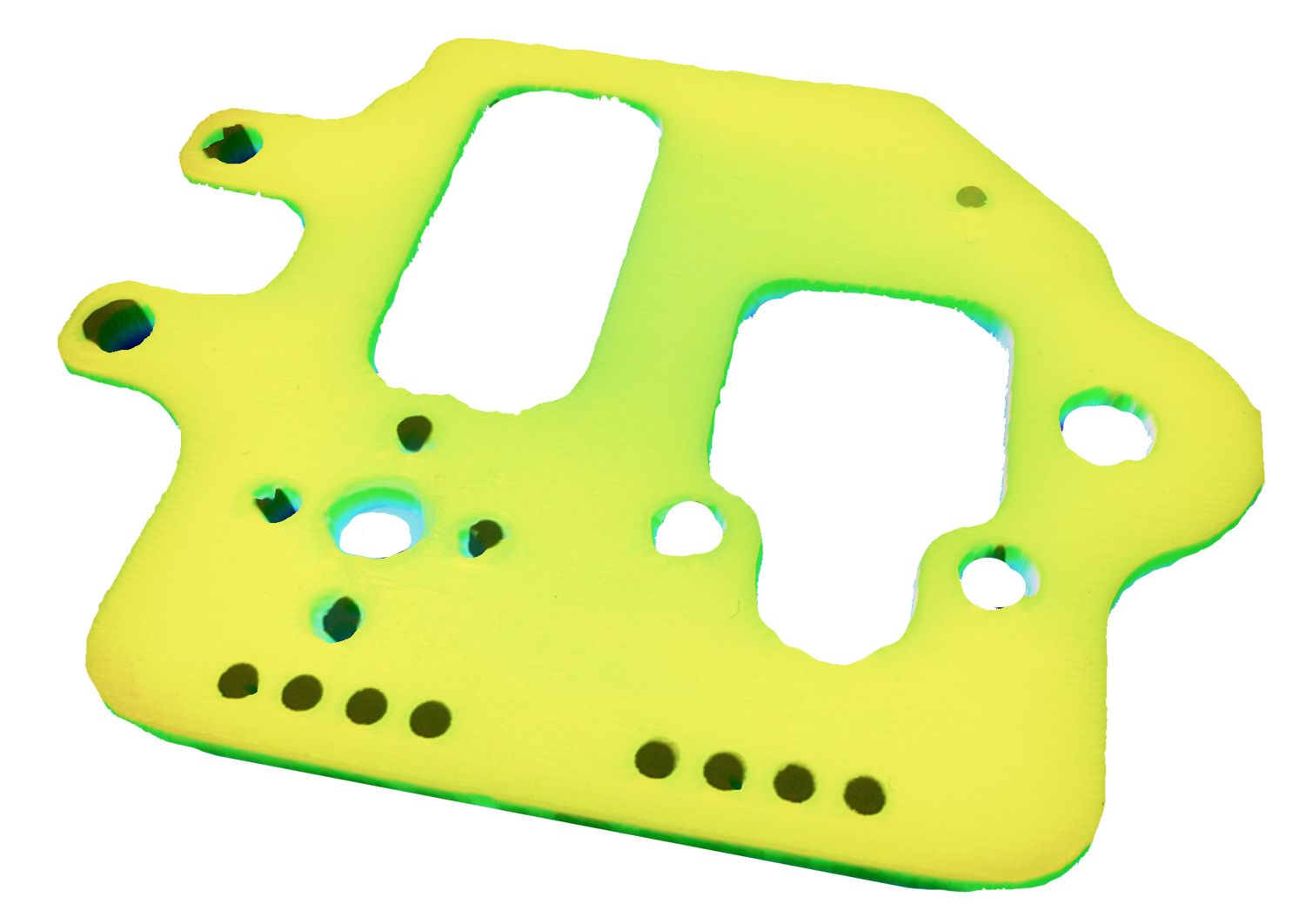

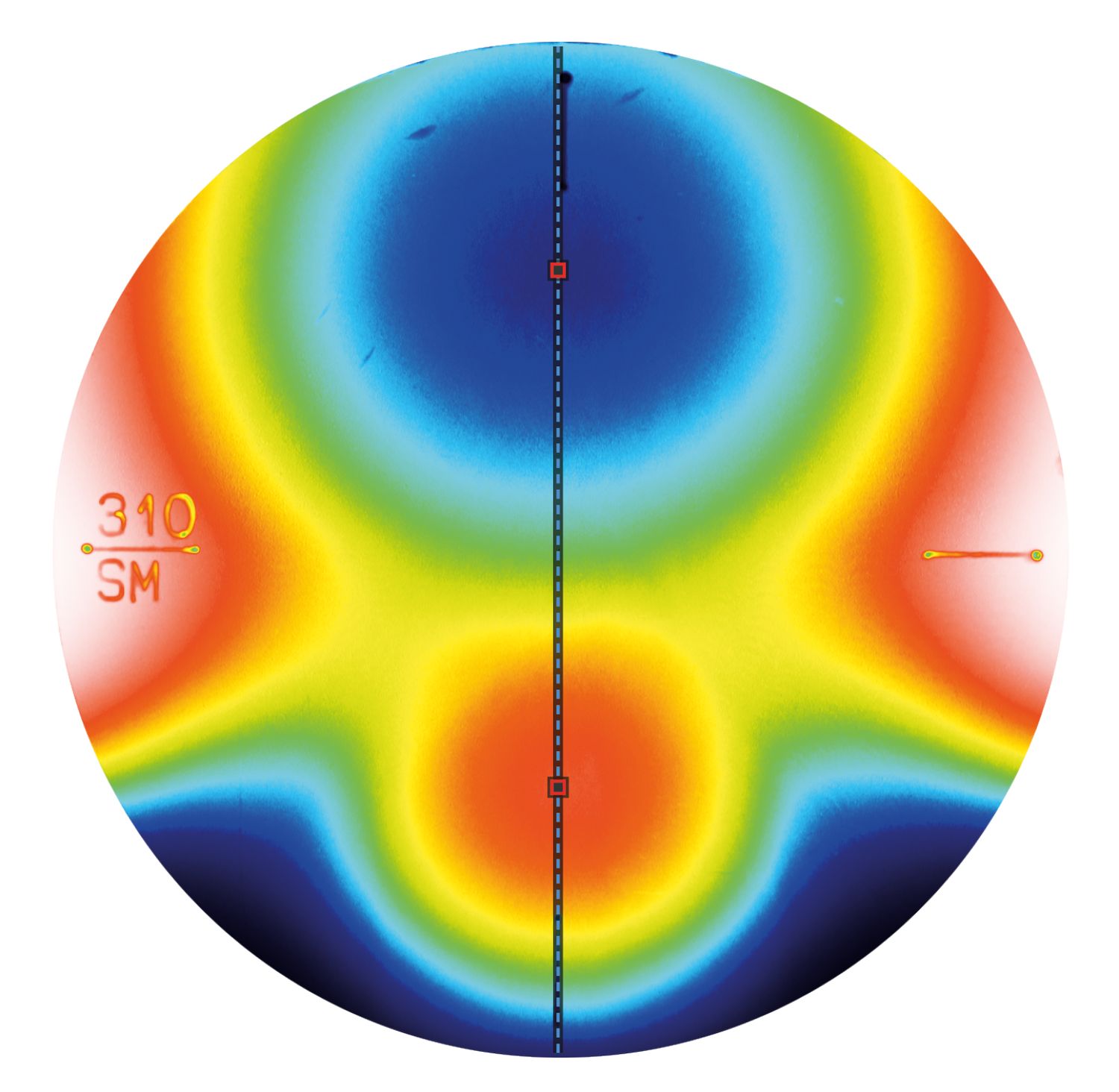

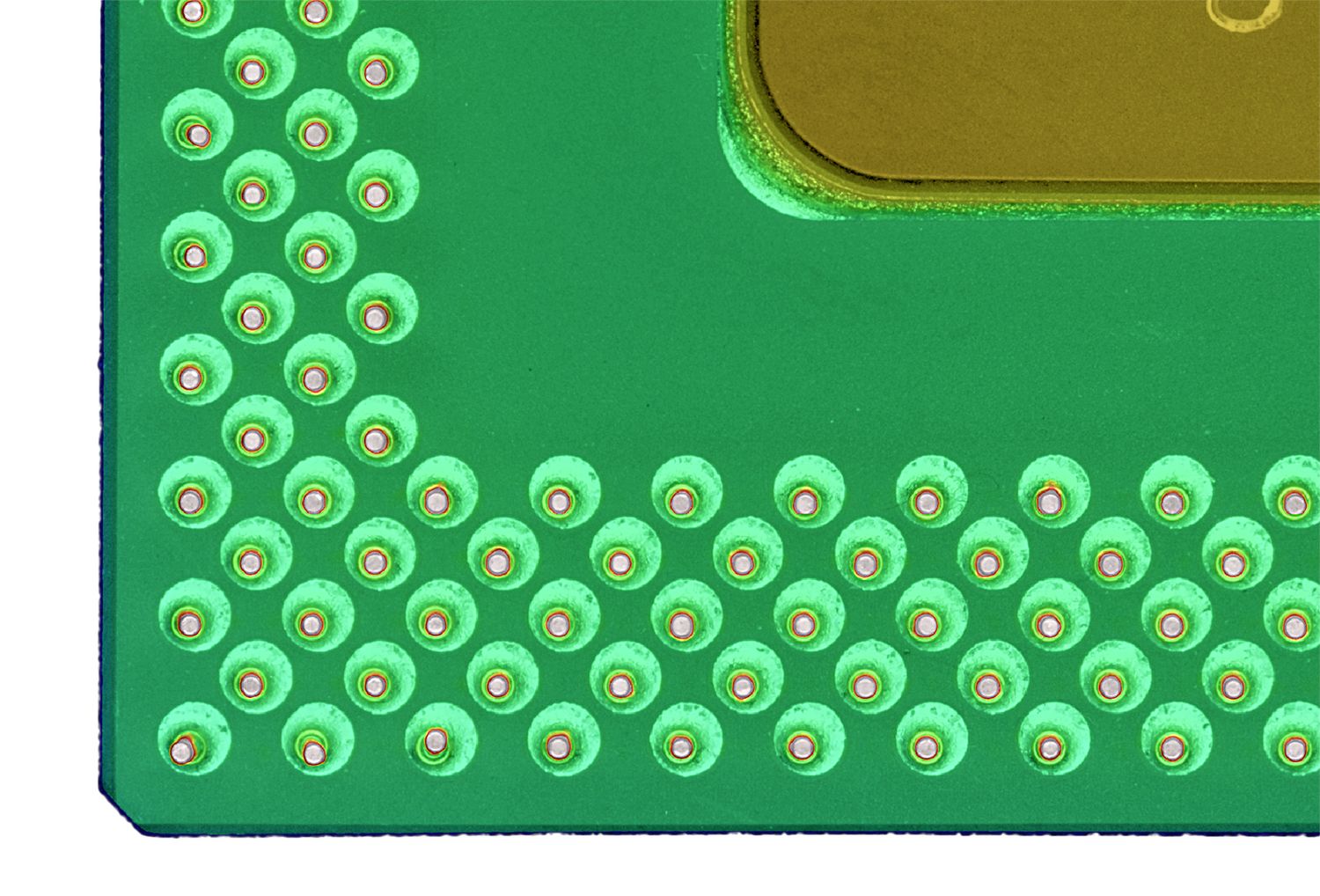

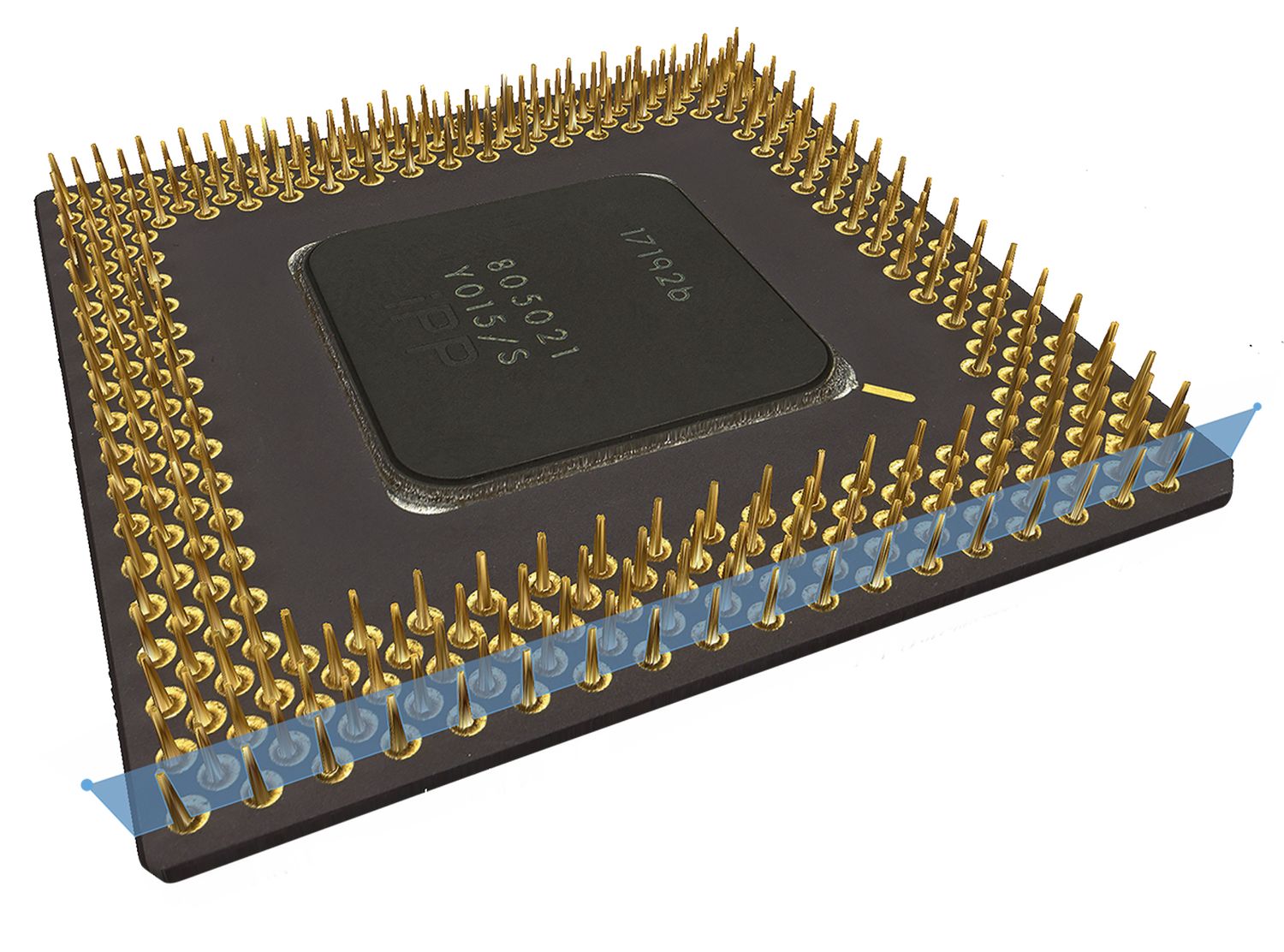

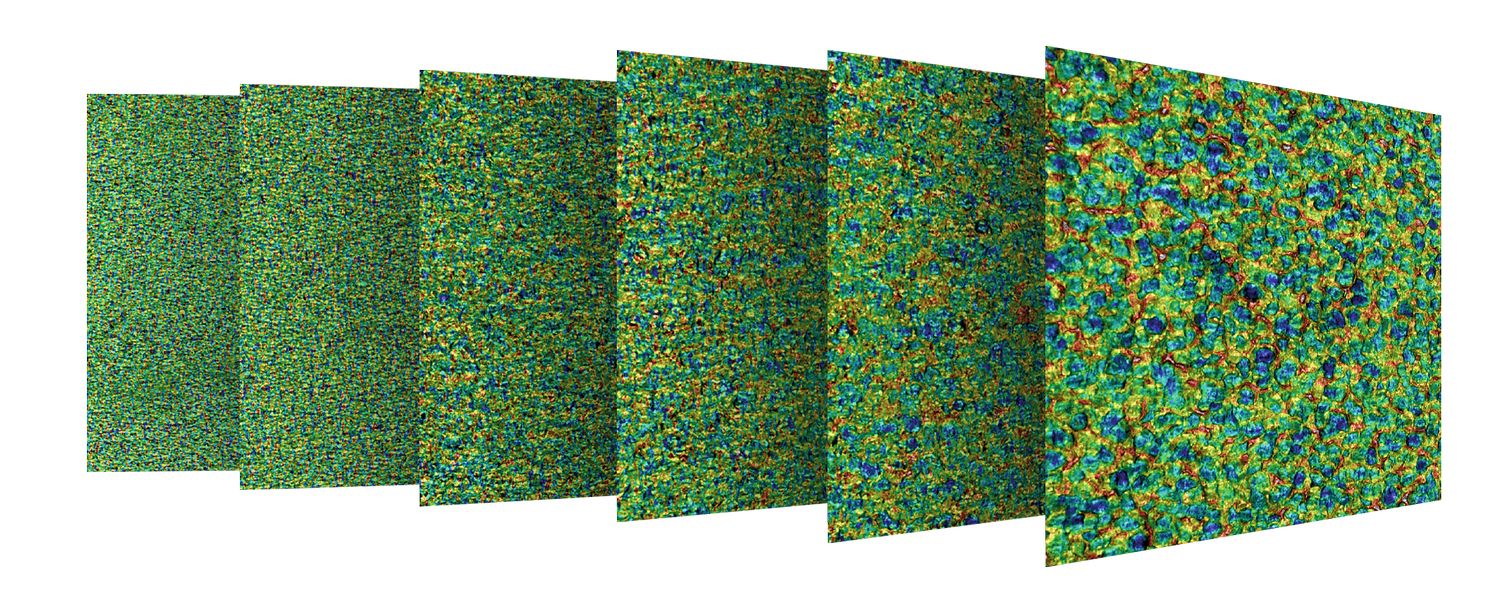

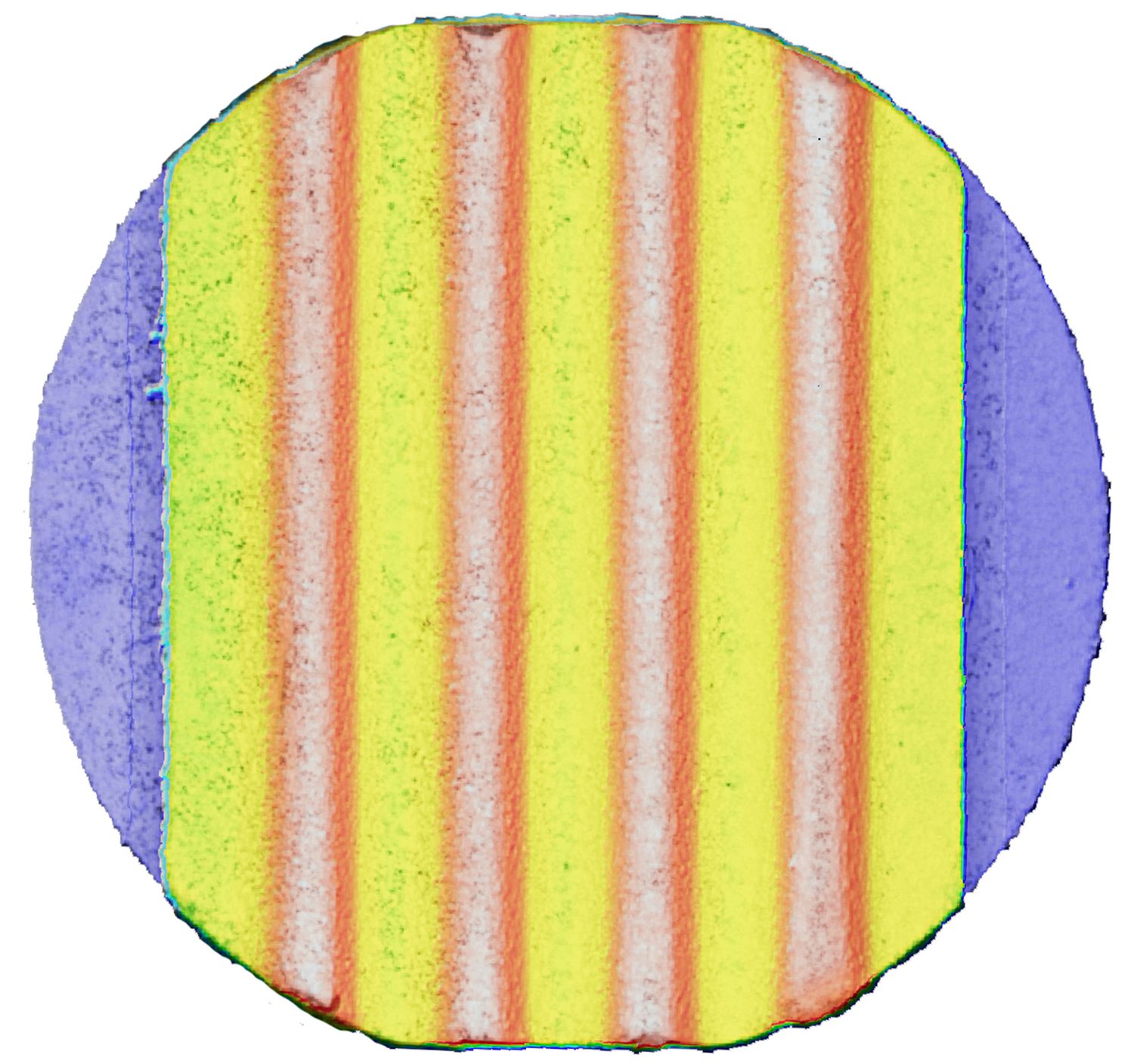

Application Fields
Every S wide is manufactured to deliver accurate and traceable measurements. Systems are calibrated using traceable standards according to ISO 25178 and VDI 2634-2.

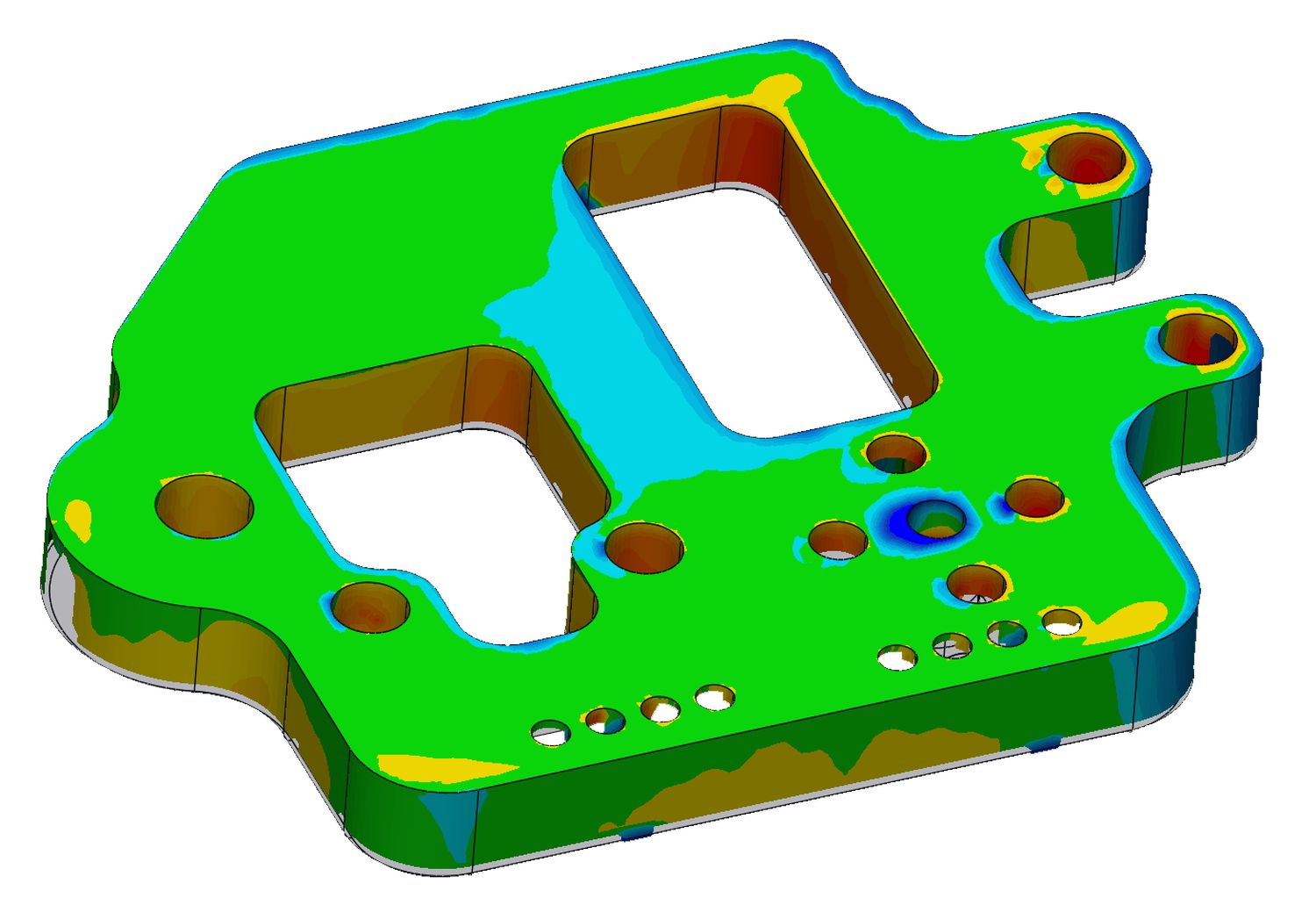

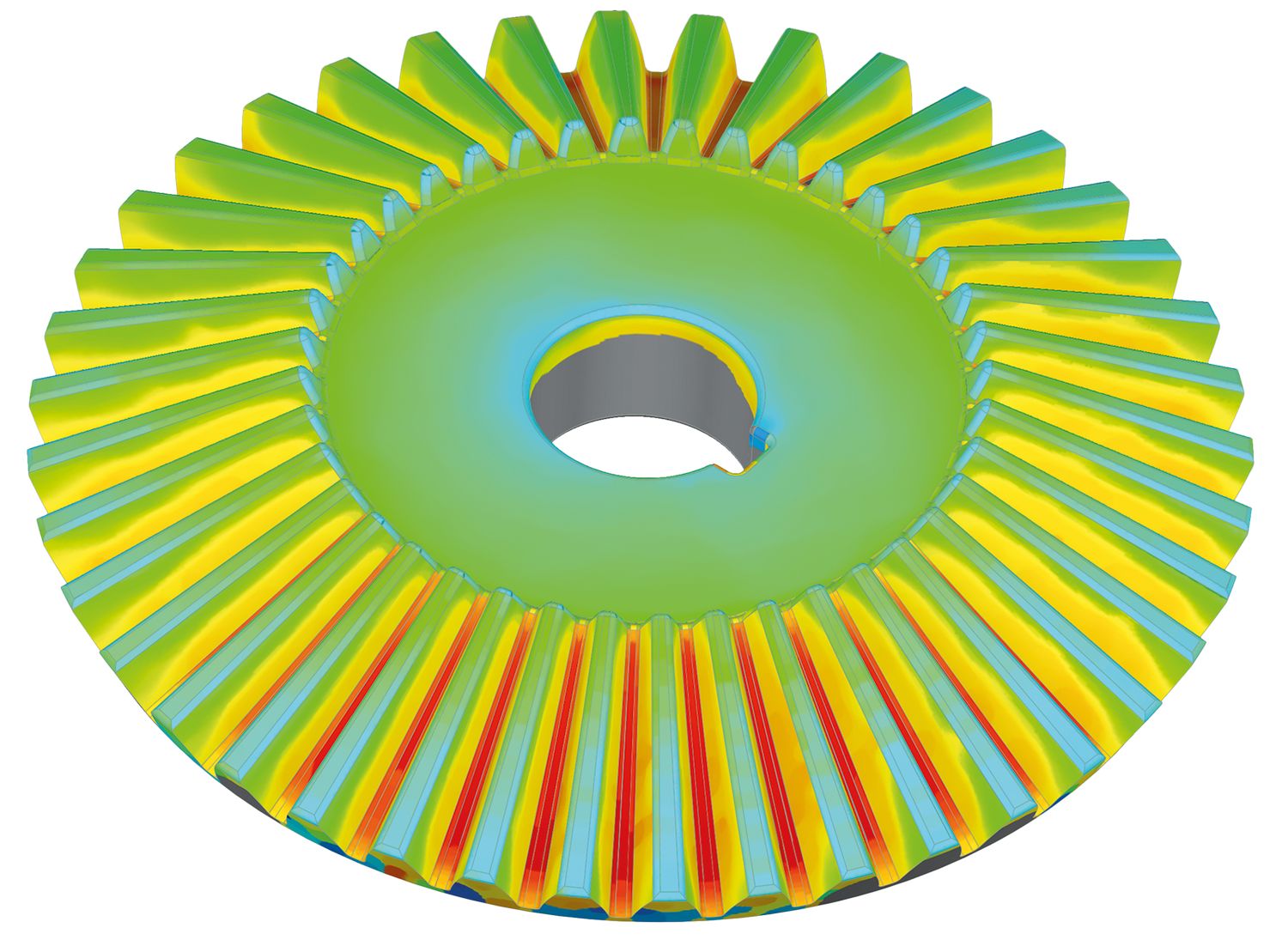

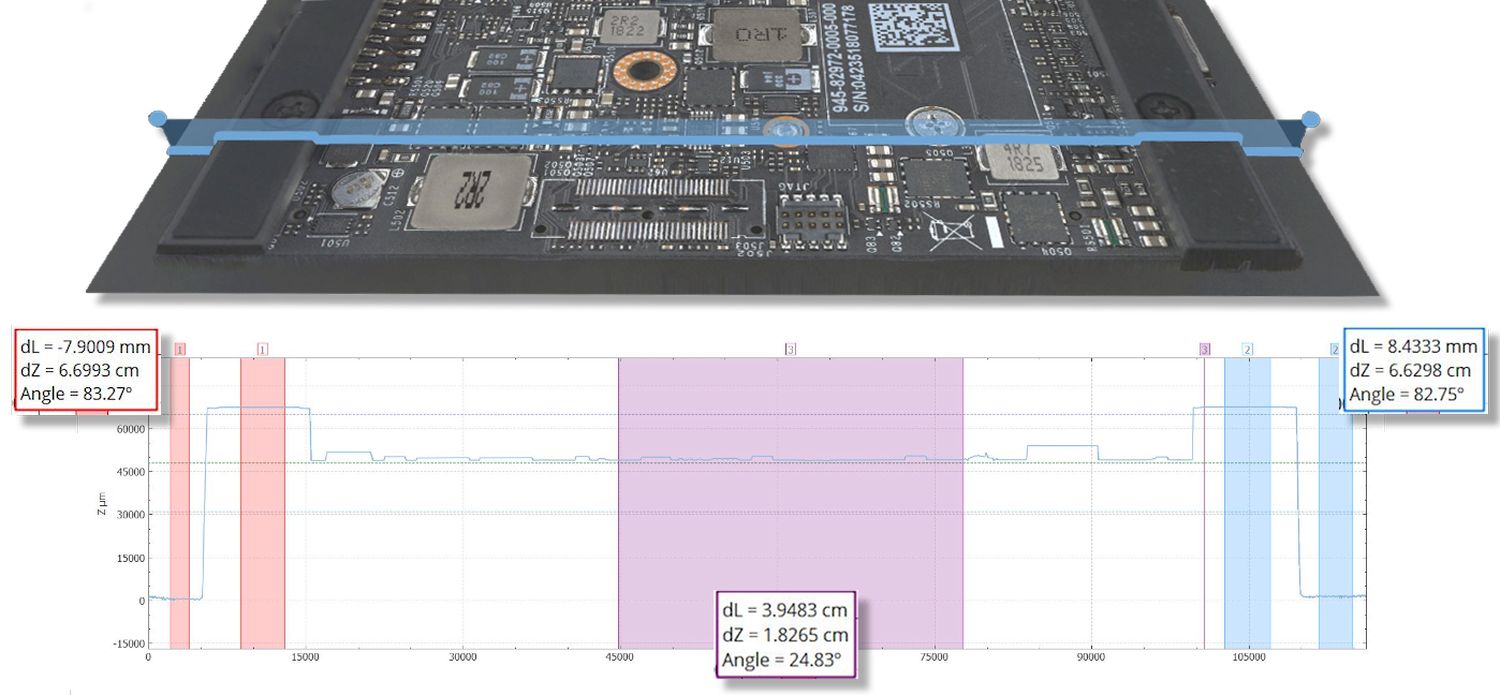

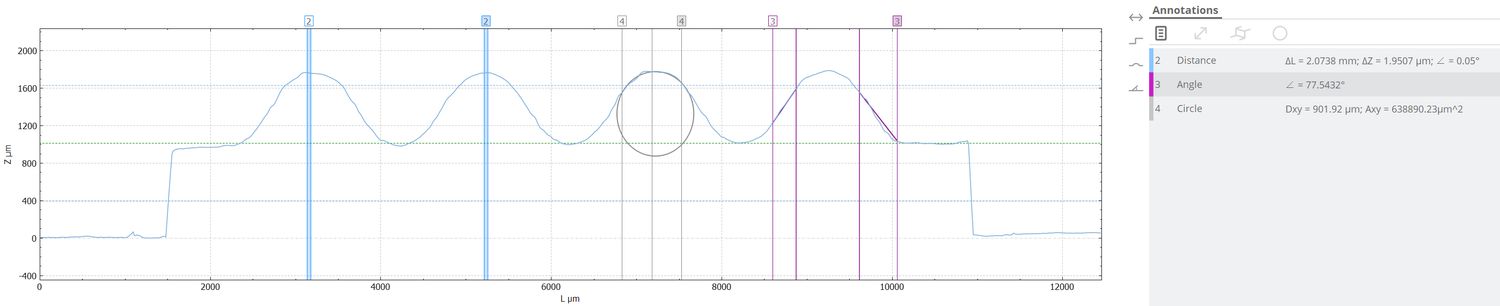

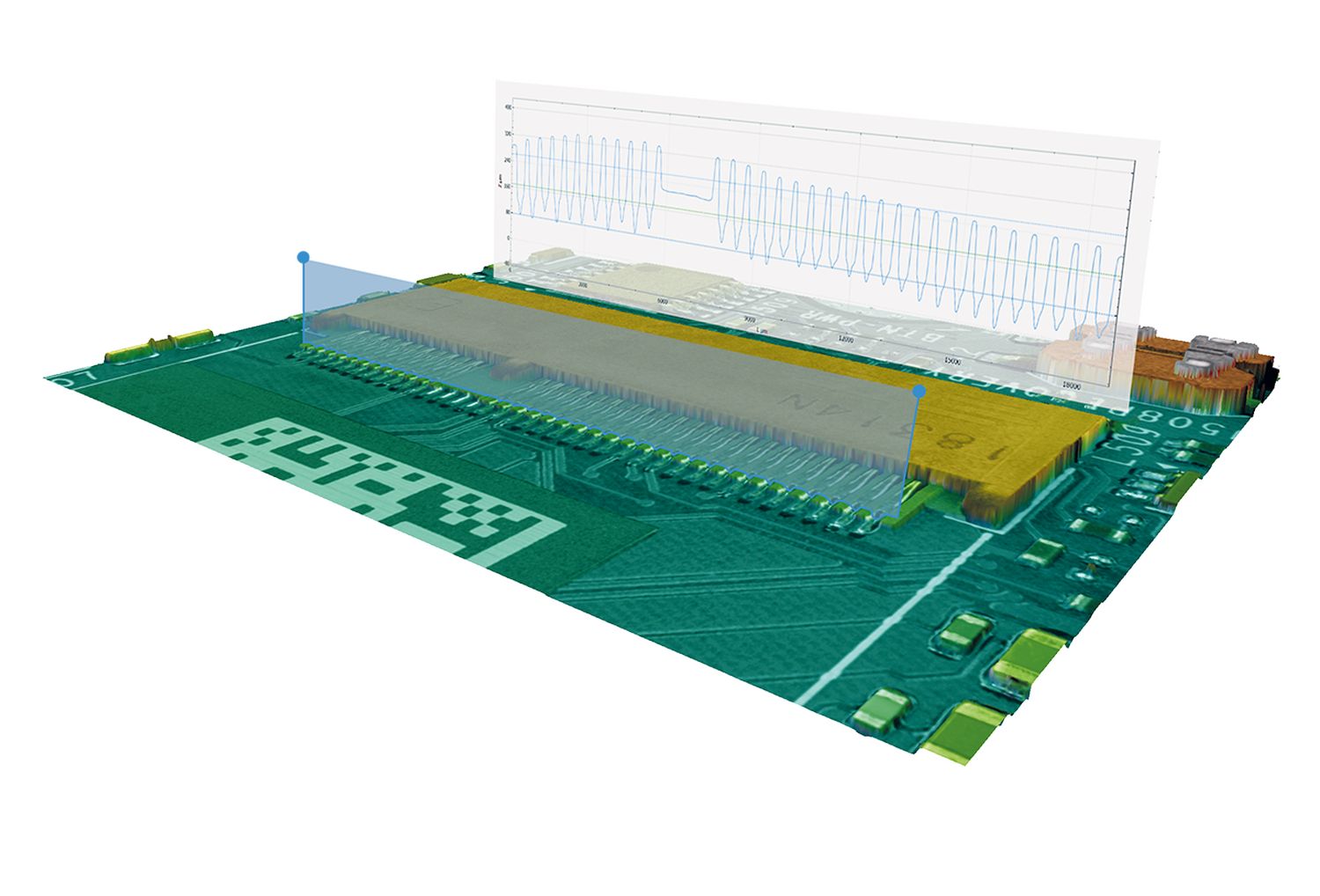

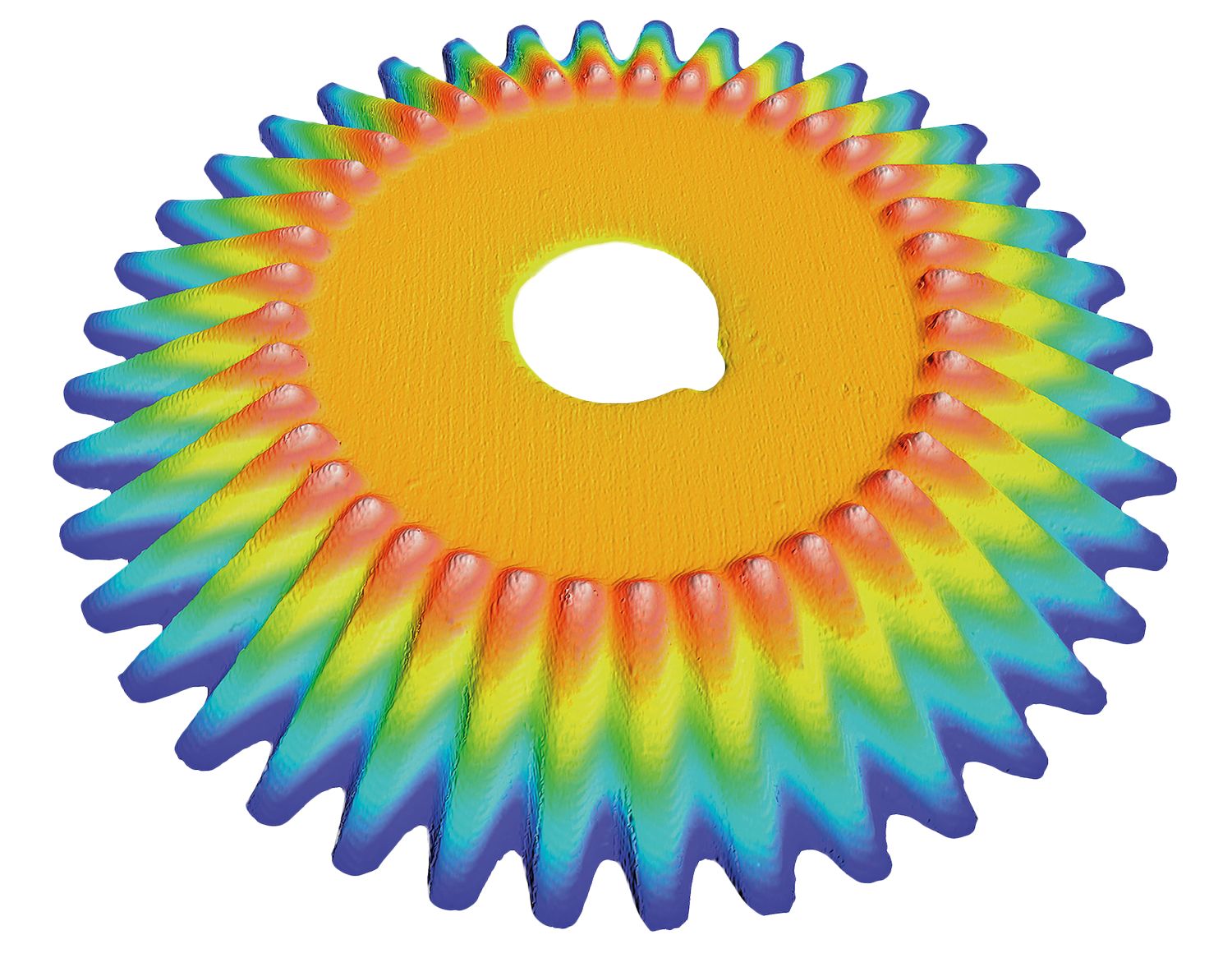

Providing the geometric difference and tolerance measurement
SensoSCAN
SensoSCAN Software drives the system with its clear, intuitive and user-friendly interface. The operator is guided through the 3D environment, delivering a unique user experience.
EXTENDED MEASUREMENTS MODULE
SensoSCAN’s extended measurements module allows the user to easily define the measurement layout. Wide areas of up to 450 million pixels are possible.
AUTOMATING PROCEDURES MODULE
Automated measurements are obtained using the Recipes tool, which is a customizable facility for creating quality control procedures. It is extremely easy to define procedures for automating measurements with sample identification and automatic fiducials recognition.

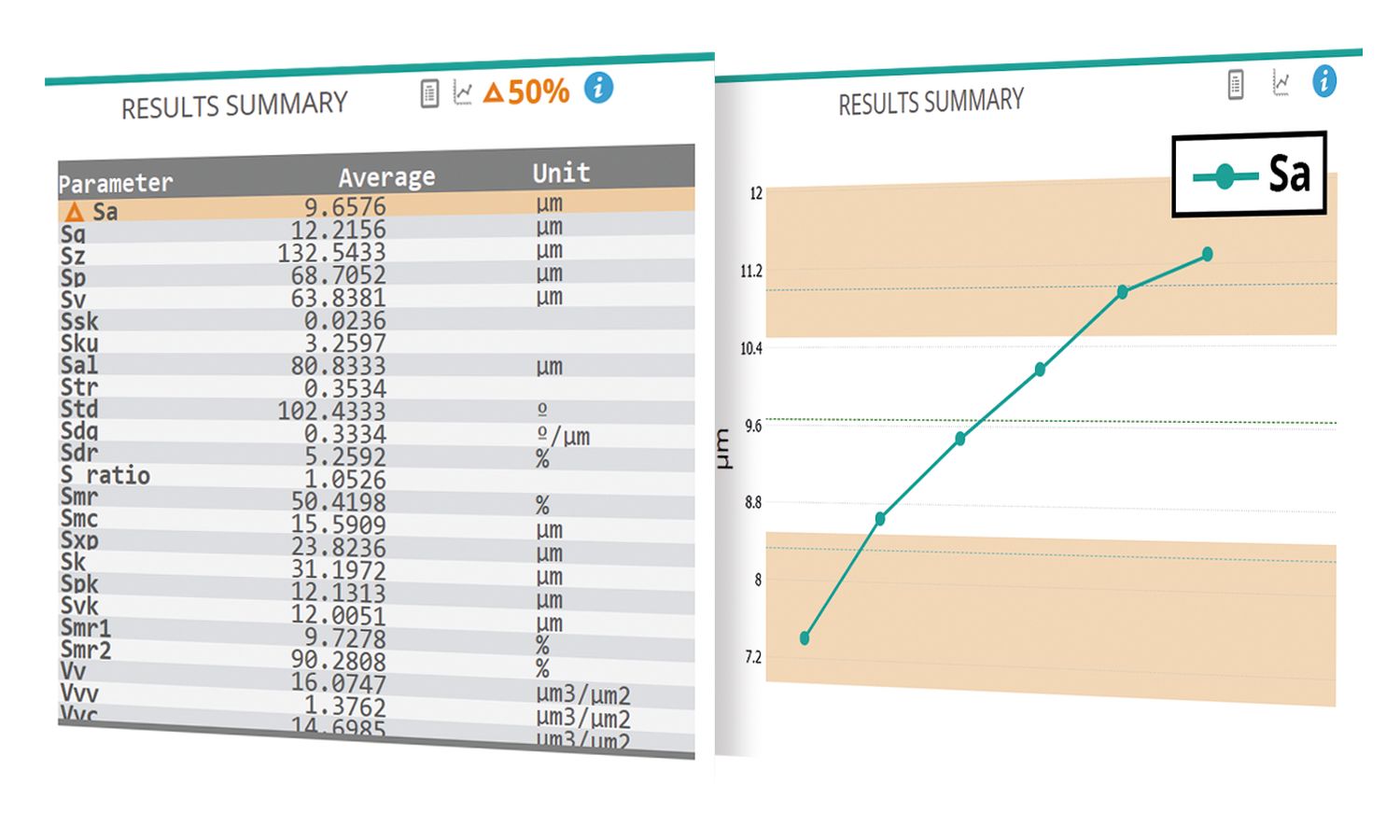

SensoPRO
It has never been so easy to perform rapid quality control on a production line. Thanks to SensoPRO, the operator only needs to load the sample and follow guided instructions to get “pass or fail” criteria. Plug-in-based data analysis algorithms provide a high degree of flexibility.
Technical Features
Measuring principle
Fringe Projection (Gray code & Slit, Gray code & Phase Shift)
Observation types
Bi-telecentric lens with 0.243X magnification and 0.015 NA
Color camera
5Mpx: 2448x2048 pixels (60 fps)
Total magnification (27" screen)
11X
Display resolution
0.001 µm
Max. Extended measuring area
300x300 mm with 10x12 stitched fields (Max. resolution 450 Mpx)
Vertical measuring range
10 mm (up to 40 mm)
XY stage range
Manual: 150x100 mm
Motorized: 154x154 mm, 302x302 mm
LED light sources
Green (530 nm) and blue (460 nm)
Ring light illumination
White
Sample weight
up to 25 Kg
Sample height
105 mm (standard)
280 mm (optional)
User management rights
Administrator, advanced operator, operator
Advanced software analysis
Included: SensoVIEW
Optional: SensoPRO, SensoMAP, Geomagic®
Power
Line Voltage 100-240 V AC
Frequency 50/60 Hz single phase
Computer
Latest INTEL processor
3840x2160 pixels resolution (4K) (27”)
Operating system
Microsoft Windows 10, 64 bit
Weight4
55 Kg (121 lbs) table-top system
8 Kg (18 Ibs) integrable head
Environment
Temperature 10 ºC to 35 ºC
Humidity <80 % RH
Altitude <2000 m
Fringe Projection
MAG
0.243X
NA
0.015
WD (mm)
80
FOV1 (mm)
34.7 x 29.1
Spatial sampling(µm)
14.2
Optical resolution(µm)
9.35
Standard
U , σ
Step height
U = 2.5 µm,
σ = 0.05 µm
Area roughness (Sa)
U = 1 µm,
σ = 0.01 µm
Profile roughness (Ra)
U = 1 µm,
σ = 0.05 µm
