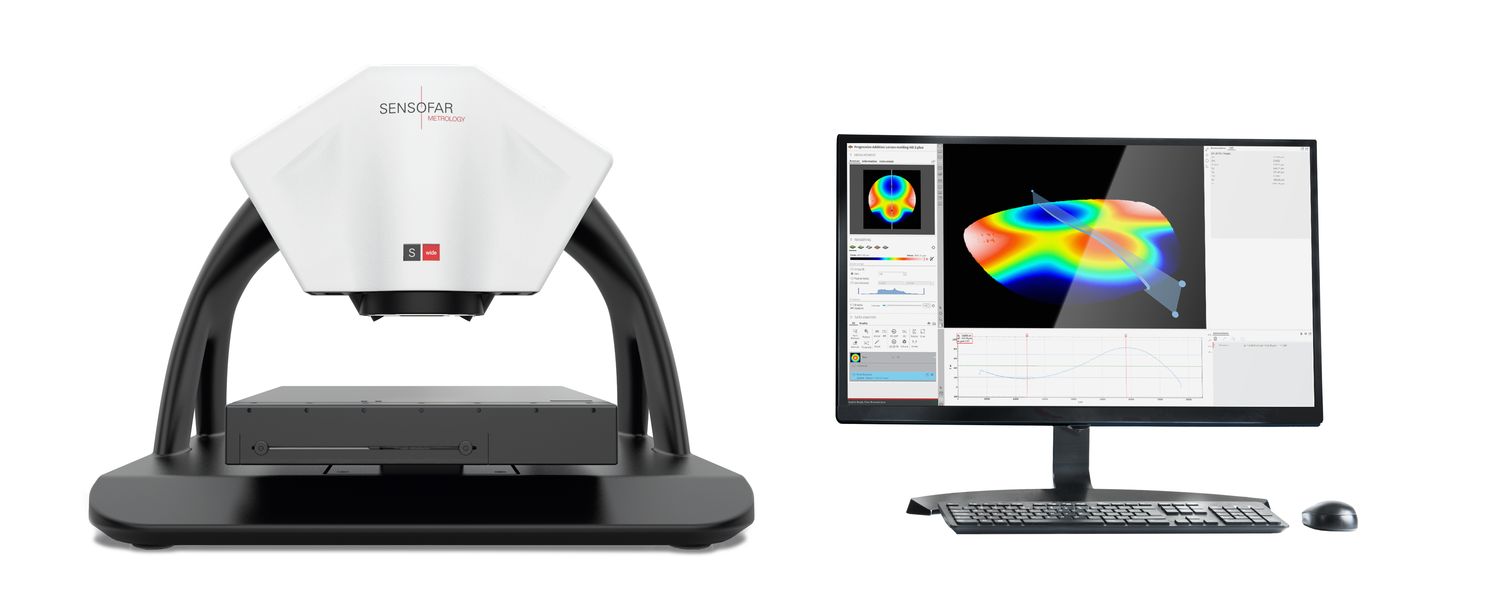

The S wide is designed to measure large areas in one single shot, suited for those applications where speed and shape measurement is the priority.
The S wide provides all the benefits of a digital microscope integrated into a high resolution measuring instrument. With only one shot, it acquires 33 x 29 mm of XY area and 40 mm of depth without any Z movement. The combination of proprietary Fringe Projection technology with telecentric lenses yields an excellent performance and 1 µm system noise.
Files
News, events, promotions, webinars
Application Fields
Fringe projection is ideal for large area measurements, providing high vertical accuracy and repeatability with low system noise. Highest about the technology include: true single shot acquisition, very large areas with high vertical accuracy and repeatability (σ = 0.01 µm), and system noise down to 1 µm, real image color and no Z-scanning.
Senso Scan
Acquisition software - Works as a server. It outputs raw data.
SDK
The Software Development Kit (SDK) is a set of tools that enable remote control of one or even several sensors. It generates and manages communication between the client's computer and the sensors, in addition to addressing the acquired data to analysis software.
SensoPRO
The speed of production line demands is matched by SensoPRO: with custom-based plugin data analysis algorithms, specific features will be automatically detected and analyzed, quickly creating a pass/fail report.
SensoVIEW
SensoVIEW is the ideal software for a broad range of analysis tasks. It includes a comprehensive suite of tools for preliminary examination and analysis of 3D or 2D measurements, provides roughness or volume calculations and measures critical dimensions with a set of analysis tools, which can be exported as a report or data set (csv file)
A bench version of the S wide is also available. You can check all his features following the link here below.
Technical Features
Technology
Fringe Projection
FOV (single shot)
34.7 x 29.1 mm
Speed acq.
3 s.
Optical Resolution
9.35 µm
System noise
1 µm
Weight
8 Kg
Cable length
5 or 10 m
Software comunication
DLL (C++ or C#, Windows 10® - 64 bits) XML (any operating system)
Export files
SensoSCAN: Data: .plux, .dat Images: bmp SensoVIEW: Data (SensoVIEW), .plux, .x3p, .dat, .pcl, .stl
Fringe Projection
MAG
0.243X
NA
0.015
WD (mm)
80
FOV (mm)
34.7 x 29.1
Spatial sampling (µm)
14,2
Optical resolution3 (µm)
9.35
Measuring principle
Fringe Projection (Gray code & Slit, Gray code & Phase Shift)
Observation types
Bi-telecentric lens with 0.243X magnification and 0.015 NA
Color camera
5Mpx: 2448x2048 pixels (60 fps)
Total magnification (27" screen)
11X
Display resolution
0.001 µm
Max. Extended measuring area
300x300 mm with 10x12 stitched fields (Max. resolution 450 Mpx)
Vertical measuring range
10 mm (up to 40 mm)
XY stage range
Manual: 150x100 mm; Motorized: 154x154 mm, 302x302 mm
LED light sources
Green (530 nm) and blue (460 nm)
Ring light illumination
White
User management rights
Administrator, advanced operator, operator
Advanced software analysis
Included: SensoVIEW; Optional: SensoPRO, SensoMAP, Geomagic®
Power Line Voltage
100-240 V AC; frequency 50/60 Hz single phase
Software communication
DLL (C++ or C#, Windows 10® - 64 bits) - XML (any operating system)
Computer
Latest INTEL processor; 3840x2160 pixels resolution (4K) (27)
Operating system
Microsoft Windows® 10, 64 bit
Environment Temperature
10 ºC to 35 ºC; Humidity
